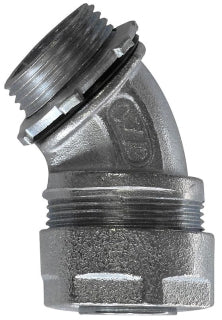

4Q4100 - Appleton 1" 45 Degree Non-Insulated Liquidtight Conduit Connector, Malleable Iron, Zinc Electroplated, Compression x Threaded, Concrete-Tight, Raintight, Oiltight

4Q4100

4Q4100 is a 1" trade size, 45-degree non-insulated liquidtight conduit connector from Appleton, designed for secure, grounded, and sealed connections in demanding environments.

This connector features a malleable iron body and nut with a zinc electroplated finish, a steel ferrule, and a male NPT threaded hub for compression connection to liquidtight flexible metal conduit. It is engineered for concrete-tight, raintight, and oiltight performance, making it suitable for wet and harsh locations where durability and environmental protection are critical. The compact design allows for a small turning radius, and the connector includes a locknut and KO sealing ring for complete installation integrity.

Key Specifications
• Part Number: 4Q4100
• Manufacturer: Appleton
• Category: Conduit & Fittings
• Type: 45 Degree Liquidtight Connector
• Size: 1 Inch
• Material: Malleable Iron Body/Nut, Steel Ferrule
• Finish: Zinc Electroplated
• Connection: Compression x Threaded Male NPT Hub
• Environmental: Concrete-Tight, Liquidtight, Raintight, Oiltight
• Certifications: UL Listed, CSA Certified
• Mounting: Threaded conduit entry
• Amperage: Not specified
• Voltage: Not specified
• Poles: Not applicable
• Interrupt Rating: Not specified
• Series/Frame: 4Q Series
• Trip Unit: Not applicable

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Heavy-duty connection device; configuration per suffix

Specifications

• Part Number: 4Q4100
• Manufacturer : Appleton
• Brand : Appleton
• Category : Conduit & Fittings
• Item Subcategory : Quick-Connect device / enclosure
• Family : 4Q Series

Product Data

• UPC : 783126618754
• GTIN : 00786210052441
• Dimensions : 2-1/2 in H x 1-3/4 in W
• Weight : 1 lb
