- Manufacturer:OZ/Gedney
Description
4Q100LT

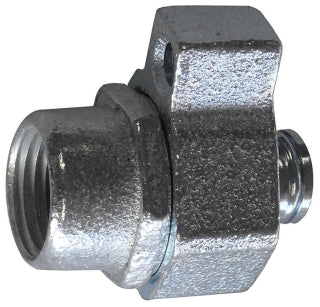

4Q100LT is a 1 inch Ground-Tite liquidtight straight connector with lug from OZ/Gedney designed for secure grounding and sealing of liquidtight flexible metal conduit (LFMC).
This connector features a malleable iron body and gland nut with a zinc plated steel ferrule, providing durability and corrosion resistance. It has a compression connection with a tapered male NPT hub and supports conductor ranges from 14 AWG to 4 AWG. The insulated throat design allows for external bonding conductor runs alongside the conduit to threaded rigid conduit and IMC. It meets UL 514B, CSA C22.2, NEMA FB-1, and Federal Specification W-F-406E standards.
- Trade size: 1 inch
- Material: Malleable iron body and gland nut
- Ferrule: Zinc plated steel
- Connection type: Compression x tapered male NPT hub
- Conductor range: 14 AWG to 4 AWG
- Insulated throat with ground lug
- Standards: UL 514B, CSA C22.2, NEMA FB-1, Federal Spec W-F-406E
- Application: Secures, grounds, and seals LFMC to boxes and enclosures
- Compact, slim diameter design for small turning radius
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 4Q100LT
- Manufacturer : OZ/Gedney
- Brand : OZ/Gedney
Product Data
- UPC : 783126617535
- GTIN : 00783126617535
- Weight : 0.5
