Product Info
- Manufacturer:OZ/Gedney
Description
4Q100L

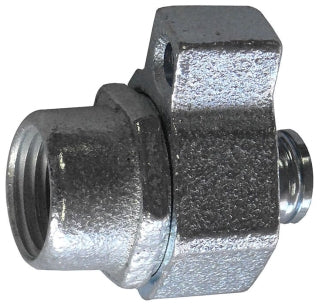

4Q100L is a 1 inch Ground-Tite liquidtight connector from OZ/Gedney designed for secure grounding and sealing of liquidtight flexible metal conduit (LFMC).This connector features a straight design made of malleable iron with zinc electroplating for corrosion resistance. It provides a compression connection on one end and a tapered MNPT hub on the other, suitable for industrial applications requiring NEMA 4 protection. The 4Q100L supports conductor sizes from 14 to 4 AWG and complies with UL 514B, CSA C22.2, and Federal Specification W-F-406E standards.
- Size: 1 inch
- Material: Malleable iron, zinc electroplated
- Type: Straight liquidtight connector
- Connection: Compression X tapered MNPT hub
- Conductor range: 14 - 4 AWG
- Standards: UL 514B, CSA C22.2, Federal Spec W-F-406E
- NEMA rating: NEMA 4
- Application: Liquidtight flexible metal conduit (LFMC)
- Grounding feature: Ground-Tite design
- Dimensions: Approx. 1.76 in height x 2.375 in width
Specifications
- Part Number: 4Q100L
- Manufacturer : OZ/Gedney
- Brand : OZ/Gedney
Product Data
- GTIN : 0783126617528
- Weight : 5.19
