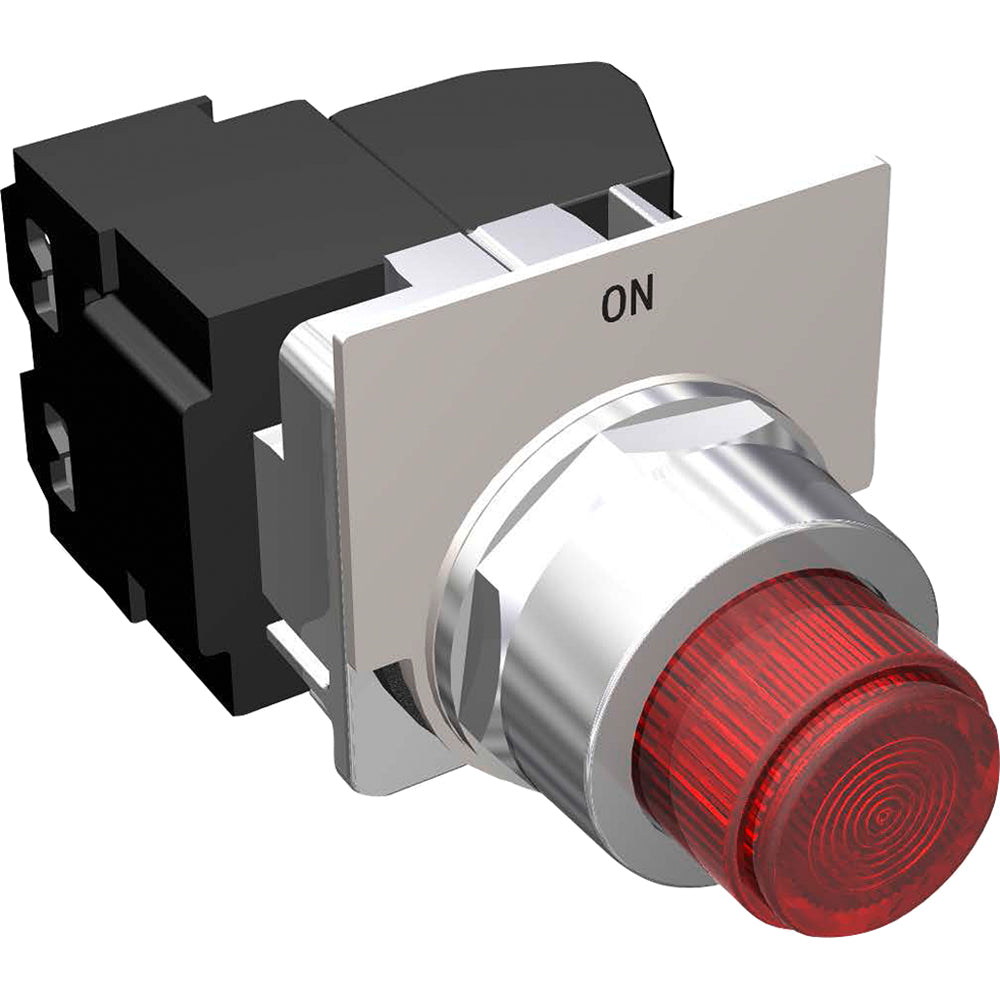

49SPLPBRF - Siemens 120V Red Pushbutton Pilot Light, Panel Mount, NEMA Control Accessory

49SPLPBRF

49SPLPBRF is a Siemens 120V red pushbutton pilot light designed for panel mounting in NEMA control product applications.This pushbutton features a red LED lamp with an ON legend, suitable for 120VAC nominal voltage (range 108-132VAC). It mounts from the rear with a 30.5 mm mounting diameter and uses screw-type terminals compatible with 2 x (18-12 AWG) copper conductors. The device is rated for NEMA 1/3/3R/4/12 & 4X environments and is finger-safe. It operates reliably in ambient temperatures from -20 to 60°C and stores safely from -25 to 80°C. The product is ISO 9001 certified and made in Germany.

• Voltage: 120VAC nominal (108-132VAC range)
• Color: Red LED lamp with ON legend
• Mounting: Rear mount, 30.5 mm diameter
• Connection: Screw-type terminals, 7-9 lb in torque
• Wire size: 2 x (18-12 AWG) copper conductors
• Environmental rating: NEMA 1/3/3R/4/12 & 4X
• Operating temperature: -20 to 60°C
• Storage temperature: -25 to 80°C
• Finger-safe design
• Weight: 0.30 lb
• ISO 9001 certified
• Country of origin: Germany

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 49SPLPBRF
• Brand : Siemens

Product Data

• UPC : 78308718068
• GTIN : 00783087180680
• Weight : 0.9
