Description
45GG10AGA

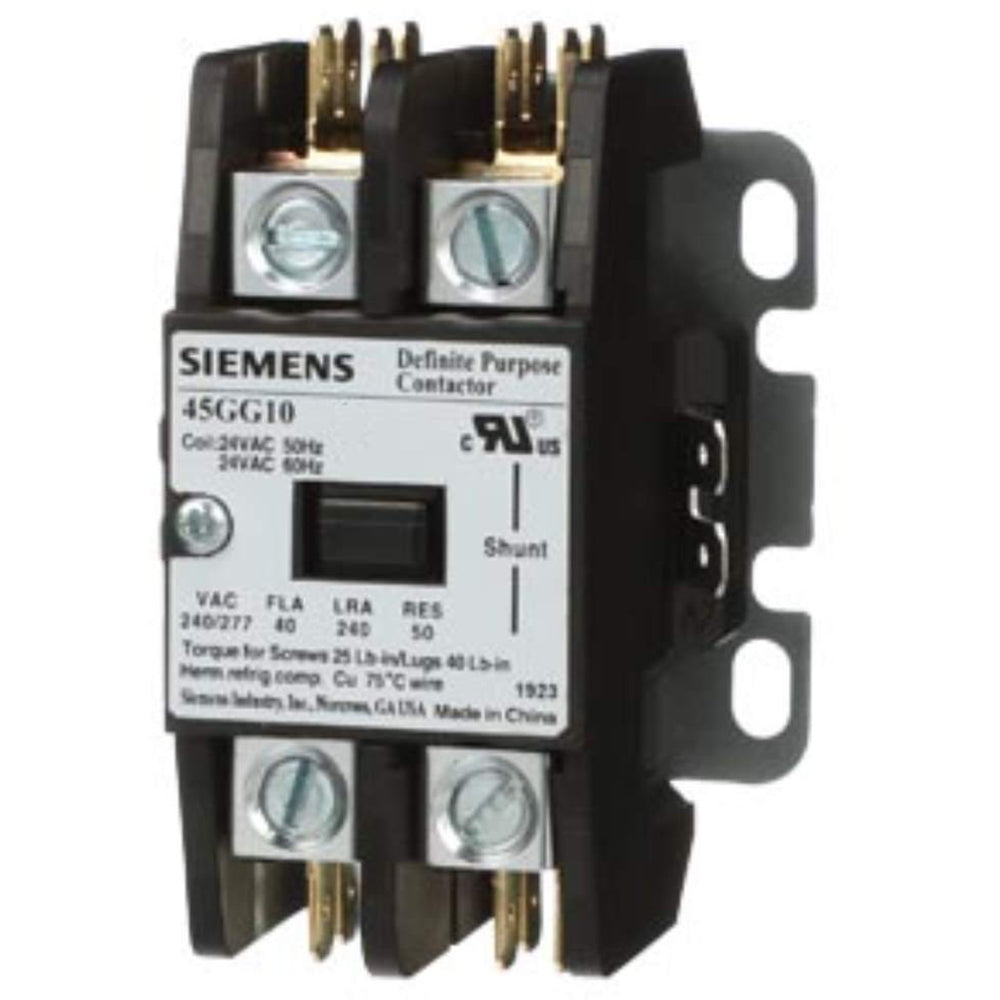

45GG10AGA is a Siemens definite purpose magnetic contactor designed for motor control applications with 1 pole and 40 amp rating.45GG10AGA features a 1 Form A (SPST-NO) relay contact configuration, supports up to 600 VAC switching voltage, and operates with a 208-240 VAC coil voltage. It is part of the Siemens Class 45 series, suitable for controlling motors and other loads requiring reliable switching. This contactor is non-reversing and designed for use in low-voltage control circuits.
- Manufacturer: Siemens
- Part Number: 45GG10AGA
- Category: Motor Control Contactor
- Poles: 1 Pole (1 Form A, SPST-NO)
- Amperage: 40 Amps
- Voltage Rating: 600 VAC switching voltage
- Coil Voltage: 208-240 VAC
- Series/Frame: Class 45
- Mounting Type: Panel Mount (typical for Class 45 contactors)
- Interrupt Rating: Definite Purpose Magnetic
- Trip Unit: Not applicable (contactor)
- Certifications: UL Listed (typical for Siemens contactors)
Specifications
- Part Number: 45GG10AGA
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 45
- Type : 45GG
- Voltage : 600
- Amperage : 40
- Phase : 1
- Poles : 1
- Temp Rating : -13–158 °F (-25–70 °C)
- Coil Voltage Maximum : 240
- Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive
Product Data
- UPC : 783087207905
- GTIN : 00783087207905
- Country of Origin : China
- Dimensions : 3.937 x 2.756 x 2.362 inch
- Weight : 0.573
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : REACH Art 33
