Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
449D797G12

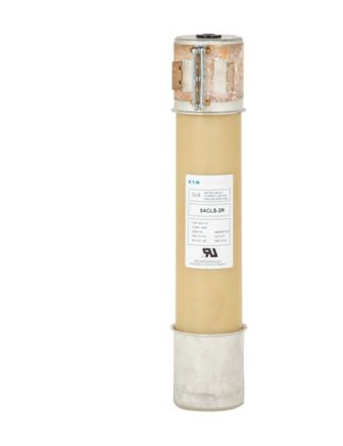

449D797G12 is a medium voltage fuse from Eaton's Bussmann series, designed for reliable overcurrent protection in industrial and commercial power systems. This Eaton 449D797G12 fuse is rated for 2.75 kV and 40A, featuring a single barrel design suitable for indoor applications. It is a Class E, current-limiting fuse with a high interrupt rating, making it ideal for demanding electrical environments.
- Part Number: 449D797G12
- Manufacturer: Eaton
- Series: Bussmann CLE
- Amperage Rating: 40A
- Voltage Rating: 2.75 kV
- Interrupt Rating: 50 kAIC
- Class: Class E
- Mounting Type: Single Barrel
- Application: Indoor
- Frame: CLE
- Special Features: Current Limiting
- Standards: IEEE Std. C37.41
Specifications
- Part Number: 449D797G12
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Type : CLE
- Voltage : 2750
- Amperage : 40
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 7
Product Data
- Weight : 7
