Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
43F075-IVBTB

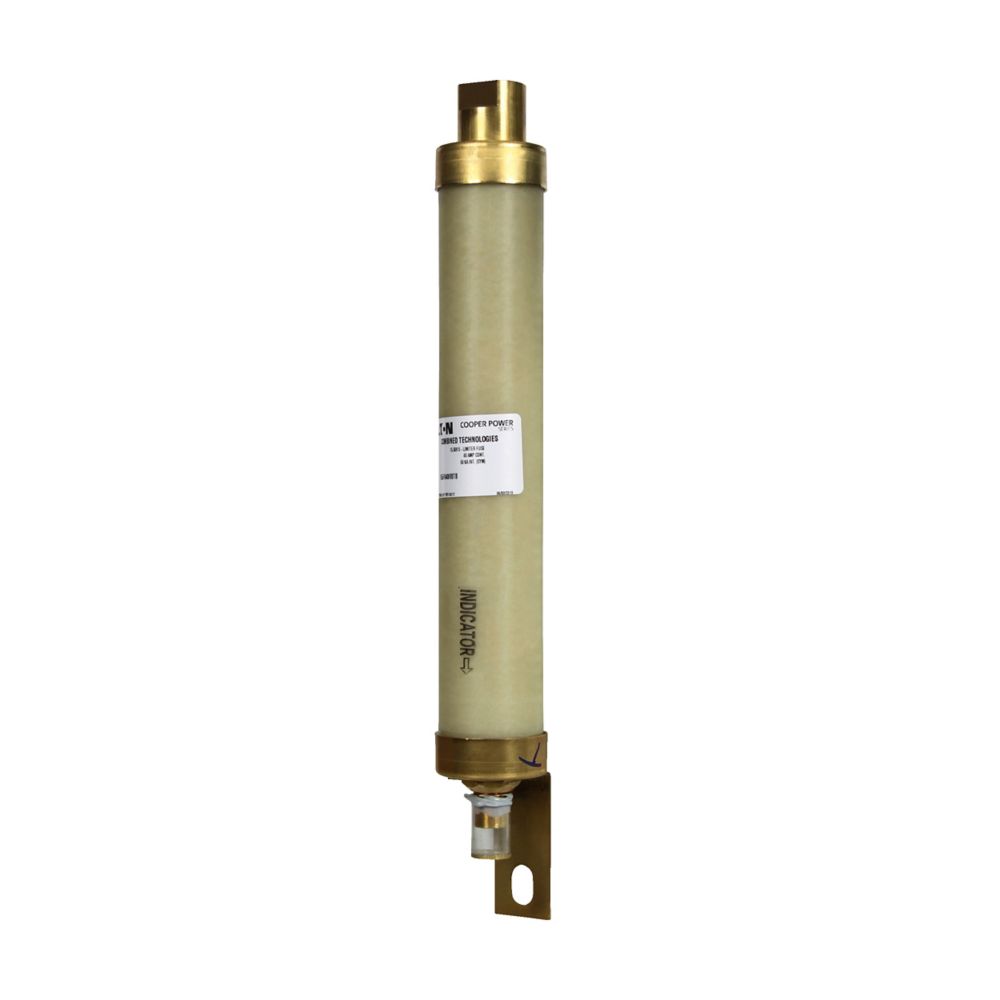

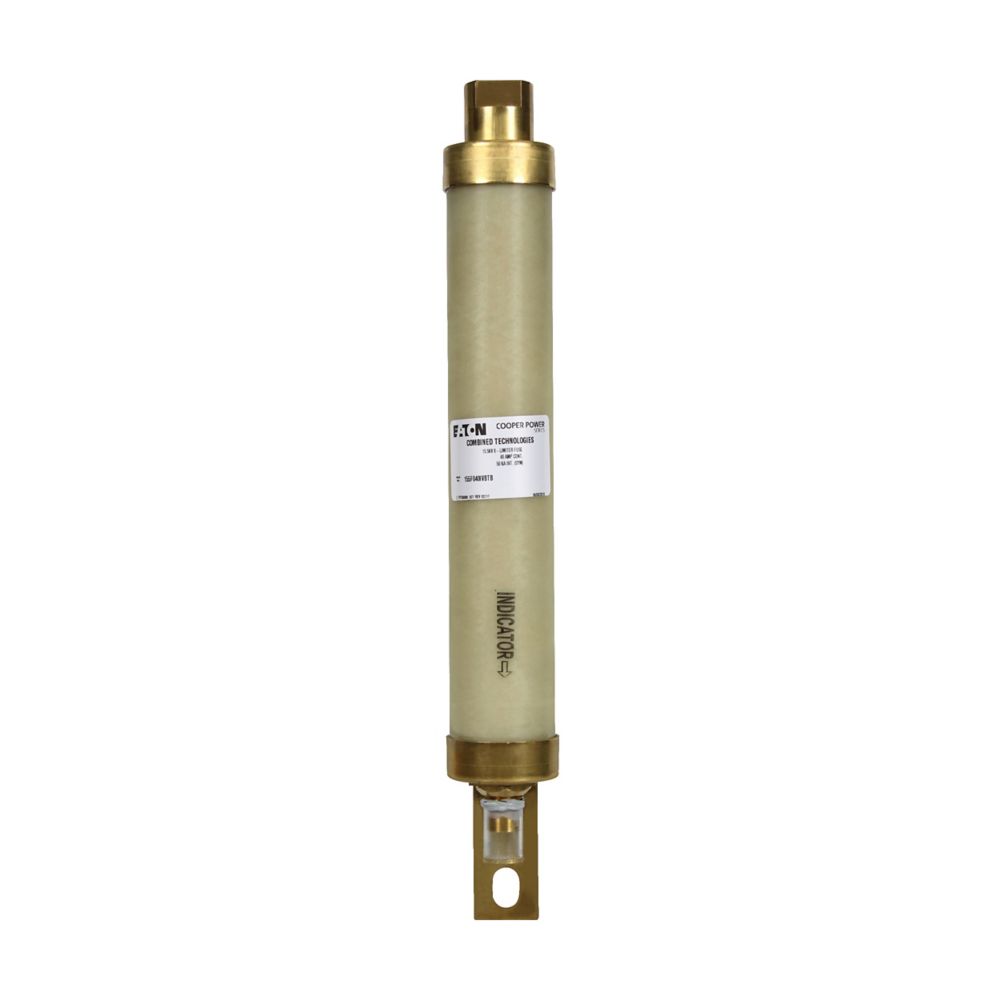

43F075-IVBTB is an Eaton Cooper Power series current-limiting capacitor fuse designed for indoor direct connect applications.This fuse features a 75 ampere rating with a voltage rating of 4.3 kV and a maximum interrupting current of 50 kA. It has a 2.13 inch diameter and is classified under Distribution C fuse ratings. The fuse includes a cap bushing/bolt tab connection and is equipped with an indicator for blown fuse status. It complies with IEEE Std. C37.41 and is intended for use in medium voltage power distribution systems.
- Key Specifications
- Amperage Rating: 75 A
- Voltage Rating: 4.3 kV
- Interrupting Current: 50 kA max
- Fuse Type: Current-limiting capacitor fuse
- Fuse Rating: Distribution C
- Mounting Type: Indoor direct connect
- Connection: Cap bushing/bolt tab
- Diameter: 2.13 inches
- Indicator: Included
- Certifications: IEEE Std. C37.41
Specifications
- Part Number: 43F075-IVBTB
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Section : Current limiting capacitor fuse
- Voltage : 4300
- Amperage : 75
- Connection : Bolt-In
- Diameter : 2
- Class Rating : C
- Barrels : 1
Product Data
- UPC : 194006053594
- Dimensions : 11.4 in x 2.2 in x 2.1 in (Length/Depth x Height x Width)
- Weight : 8.818
