Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
43F045-IVBTB

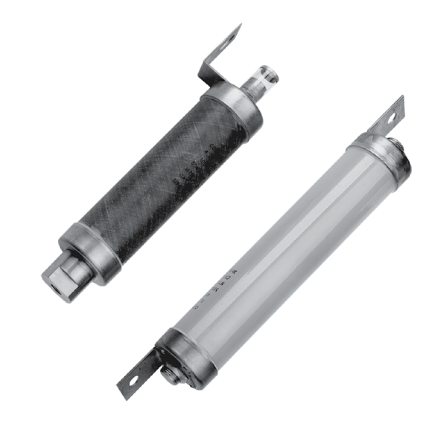

43F045-IVBTB is an Eaton Cooper Power series direct-connected capacitor fuse designed for indoor use with a 4.3 kV voltage rating and 45 ampere current rating.This fuse features a BTB design with a bolt tab connection for direct mounting to capacitor bushings. It provides current-limiting protection with a maximum interrupting rating of 50 kA, suitable for medium voltage capacitor bank applications. The fuse includes a red indicator to show blown fuse status and complies with IEEE Std. C37.41.
- Amperage Rating: 45 A
- Voltage Rating: 4.3 kV
- Interrupting Current: 50 kA max
- Fuse Type: Current-limiting capacitor fuse
- Design: BTB direct-connected capacitor fuse
- Mounting: Indoor direct connect with bolt tab
- Indicator: Red blown fuse indicator
- Standards: IEEE Std. C37.41
Specifications
- Part Number: 43F045-IVBTB
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Type : NX
- Voltage : 4300
- Amperage : 45
- Connection : Special
- Diameter : 2
- Class Rating : C
- Barrels : 1
Product Data
- Weight : 3
