Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
43F018-IVBT

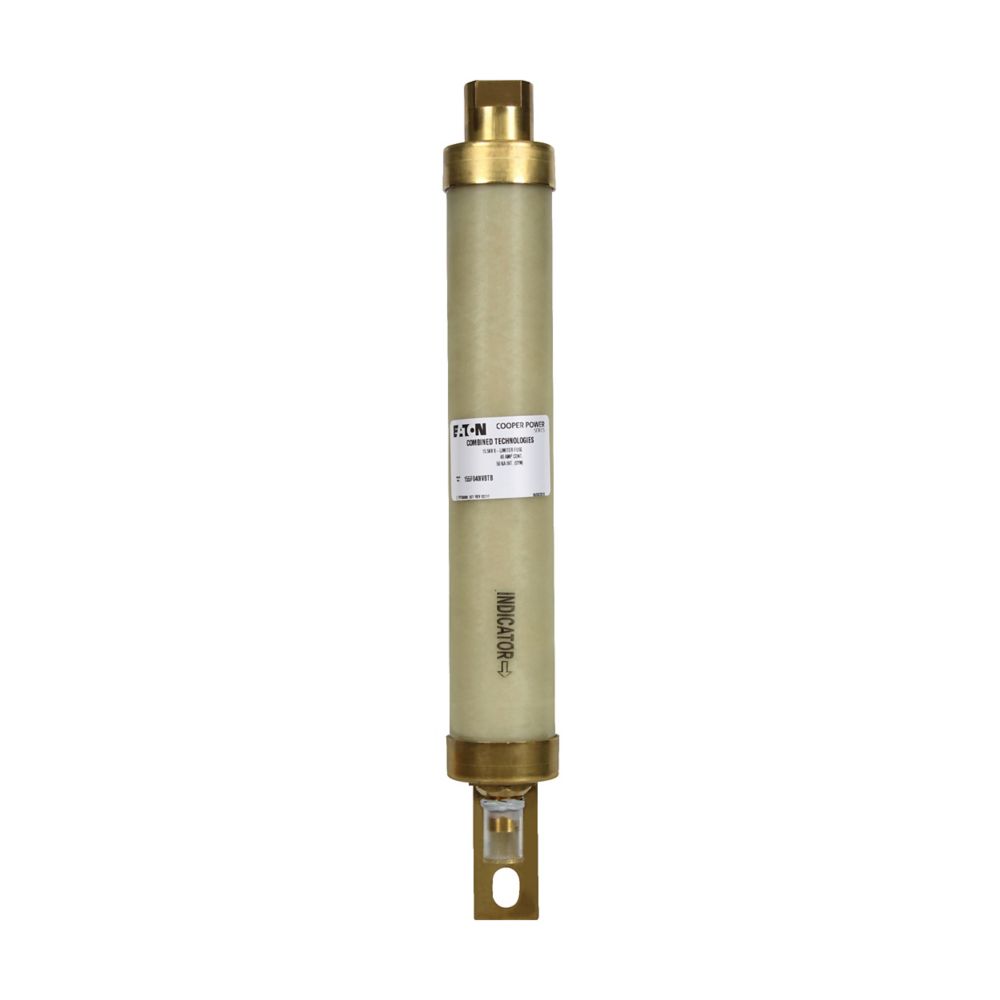

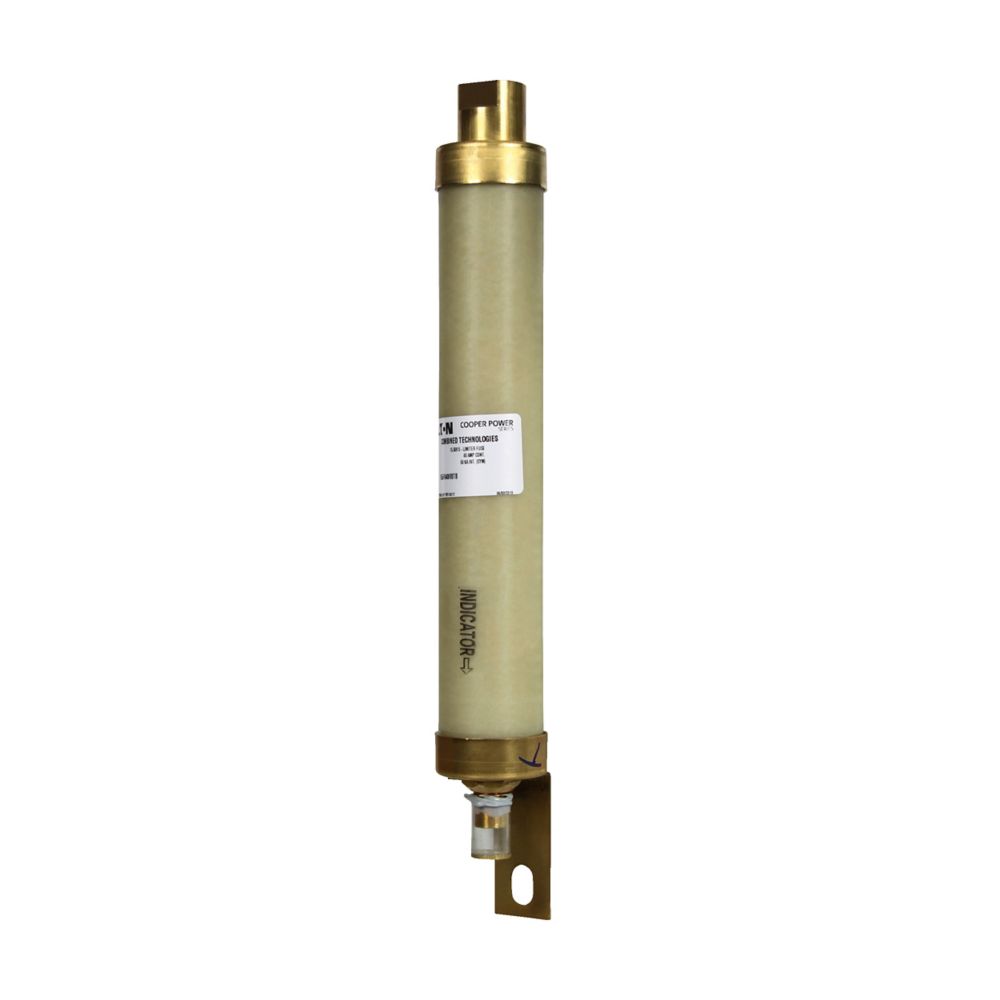

43F018-IVBT is an Eaton medium voltage capacitor fuse rated for 18 amperes and 4.3 kilovolts with a single pole design.This fuse is part of Eaton's Cooper Power series, designed for direct-connected capacitor protection in medium voltage applications. It features a 1-barrel construction with a diameter of approximately 2 inches, suitable for indoor direct connect mounting. The fuse provides current limiting protection with a maximum interrupting rating of 50 kA rms symmetrical, ensuring reliable operation in capacitor bank circuits.
- Amperage: 18 A
- Voltage Rating: 4.3 kV
- Poles: 1
- Mounting Type: Indoor direct connect
- Fuse Type: Current limiting capacitor fuse
- Series: Eaton Cooper Power
- Interrupt Rating: 50 kA rms symmetrical
- Diameter: 2 inches
- Indicator: Red fuse indicator in blown position
- Connection: Bolt tab/bolt tab
- Certifications: IEEE Std. C37.41
Specifications
- Part Number: 43F018-IVBT
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Section : Current limiting capacitor fuse
- Type : NX
- Voltage : 4300
- Amperage : 18
- Connection : NX Clip
- Diameter : 2
- Class Rating : C
- Barrels : 1
Product Data
- UPC : 194006053174
- Dimensions : 13 in x 2.2 in x 2.1 in (Length/Depth x Height x Width)
- Weight : 8.818
