Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
43F010-I

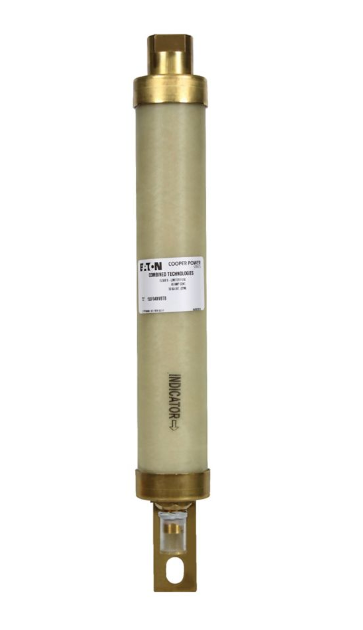

43F010-I is a full-range current-limiting fuse designed for medium voltage applications, providing reliable protection in power distribution systems. This Eaton X-Limiter fuse is engineered for use in pad-mounted transformers, switchgear, and industrial vaults, offering fast-acting protection against overcurrent and short-circuit events. The 43F010-I features a 10A continuous current rating and a maximum design voltage of 4.3kV. It is a clip-mount fuse compatible with standard 5/8" fuse clips, making it suitable for a wide range of installations. The fuse is marked with a mounting code for easy identification and proper installation.
- Part Number: 43F010-I
- Manufacturer: Eaton
- Series: X-Limiter
- Continuous Current Rating: 10A
- Maximum Design Voltage: 4.3kV
- Mounting Type: Clip Mount
- Mounting Code: 6
- Application: Pad-Mounted Transformers, Switchgear, Industrial Vaults
- Interrupting Rating: 50,000A RMS Symmetrical
- Construction: Full-Range Current-Limiting
- Indicator: Optional Blown-Fuse Indicator (I suffix)
- Standards: ANSI C37.46, ANSI C37.47
Specifications
- Part Number: 43F010-I
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Voltage : 4300
- Amperage : 10
- Connection : NX Clip
- Diameter : 2
- Class Rating : C
- Barrels : 1
Product Data
- Weight : 3
