Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
423D814A14

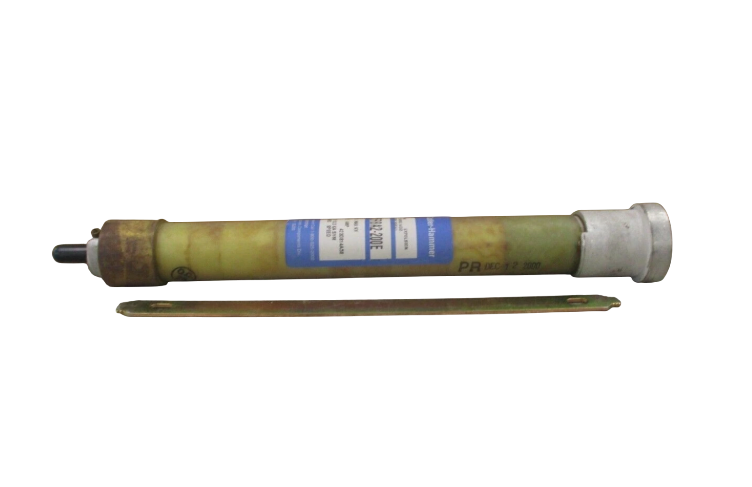

423D814A14 is a medium voltage expulsion fuse manufactured by Eaton for reliable circuit protection in demanding electrical systems. This fuse is rated for 8.25kV and 100E amperes, designed to meet IEEE/ANSI C37.40 standards for high-performance power distribution applications. The E-rating indicates the fuse element will melt in 300 seconds at an rms current within the range of 200 to 240 percent of the rated continuous current, providing consistent protection across utility and industrial installations.
- Rated Voltage: 8.25kV
- Rated Current: 100E Amperes
- Fuse Type: Expulsion
- Standards: IEEE/ANSI C37.40, C37.46
- Mounting Style: Bolt-on
- Time-Current Rating: E-rated (300 second melting)
- Application: Medium voltage circuit protection
- Weight: 3.00 lbs
Specifications
- Part Number: 423D814A14
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Voltage : 8250
- Amperage : 100
Product Data
- Weight : 2
