Description

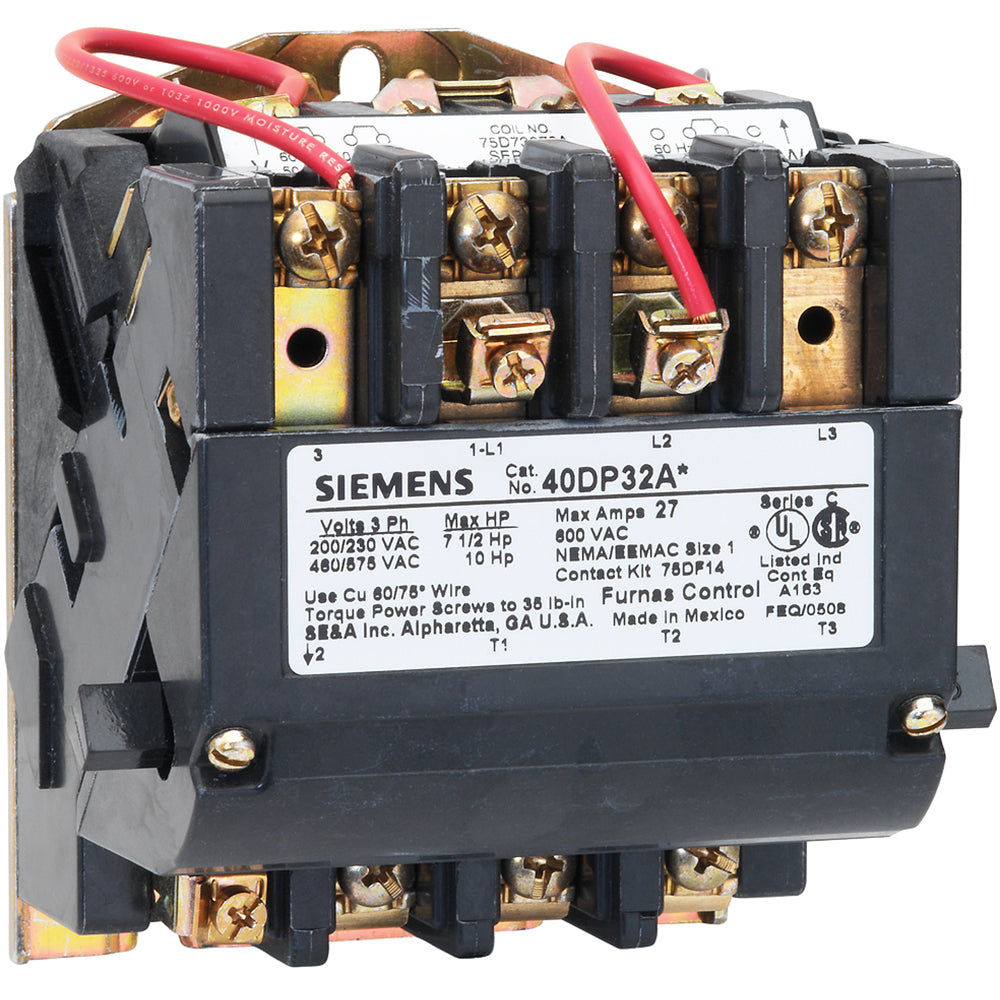

40DP32AF
40DP32AF is a Siemens NEMA Size 1, 3-pole, non-reversing magnetic contactor designed for reliable motor control in industrial and HVAC applications.
This heavy-duty contactor features a 120V AC coil, 27A current rating, and is suitable for three-phase circuits. It operates with gravity dropout contacts for consistent performance and includes one normally open auxiliary contact. The 40DP32AF is UL and CSA approved, ensuring compliance with North American safety standards.
-
Key Specifications
- Amperage: 27A
- Voltage: 120V AC (coil), three-phase (load)
- Poles: 3
- Mounting Type: Screw (panel mount)
- Interrupt Rating: Not specified in available data
- Series/Frame: NEMA Size 1
- Trip Unit: Not applicable (standard magnetic contactor)
- Certifications: UL, CSA
- Coil Power: 218 VA pickup, 25 VA holding
- Auxiliary Contact: 1NO
- Frequency: 60 Hz
- Non-reversing operation
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 40DP32AF
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 600
- Amperage : 27
- Phase : 3
- Poles : 3
- AIC rating : 150kA@480V
- Connection : Draw-Out
- Functions : LI - Long-Time and Instantaneous
- Coil Voltage Maximum : 120
- Protection : Solid State
Product Data
- UPC : 783087065888
- Country of Origin : Mexico
- Dimensions : 0.882 x 0.839 x 0.697 inch
- Weight : 2.866 lb
- Certification : REACH Art 33
