Product Info
- Manufacturer:Siemens
Description
3VA94740JJ23

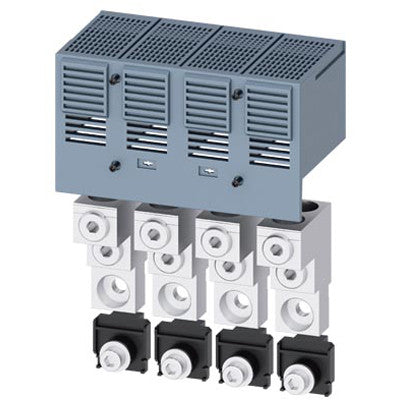

3VA94740JJ23 is a 2-wire aluminum lug terminal accessory for Siemens 3VA6 frame circuit breakers rated 400-600A.This 4-piece aluminum body 2-conductor large lug terminal with cover accepts wire sizes from 2/0 AWG to 600 kcmil copper/aluminum conductors. It provides reliable termination for Siemens 3VA5 and 3VA6 series molded case circuit breakers in the 400-600A range.
- Part Number: 3VA94740JJ23
- Manufacturer: Siemens
- Type: 2-Wire Aluminum Lug Terminal
- Frame Compatibility: 3VA5, 3VA6 Series
- Amperage Rating: 400-600A
- Wire Range: 2/0 AWG - 600 kcmil
- Conductor Material: Copper/Aluminum
- Configuration: 2-Conductor, 4-Piece with Cover
- Body Material: Aluminum
Specifications
- Part Number: 3VA94740JJ23
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Family : Sentron Series
- Type : 3VA
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
Product Data
- UPC : 804766325854
- GTIN : 00804766325854
- Country of Origin : China
- Dimensions : 7.48 x 4.173 x 4.055 inch
- Weight : 3.014 lb
- Standards : UL Listed
- Certification : UL Listed
