Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA6712-6HQ31-2AA0

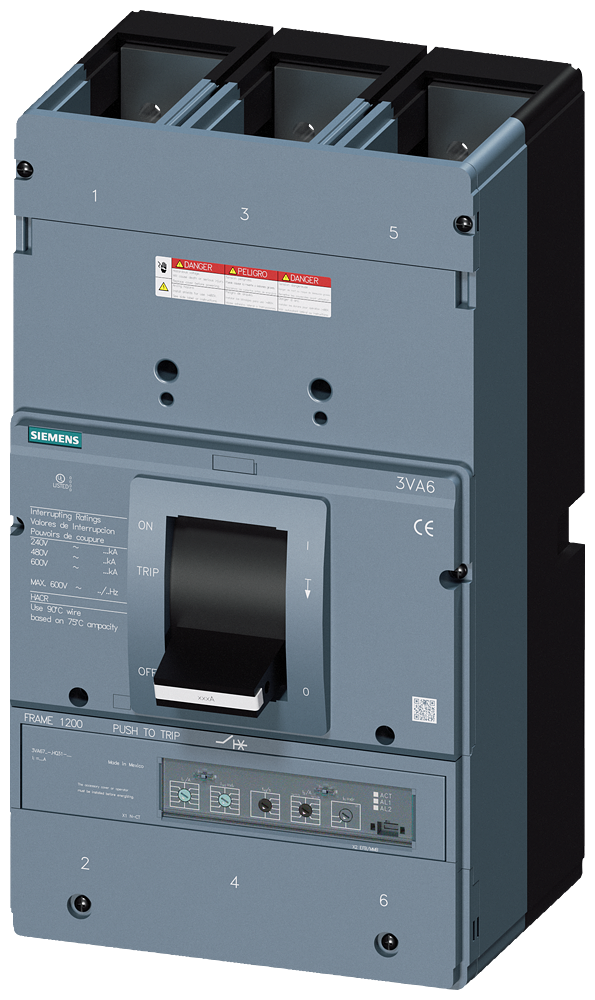

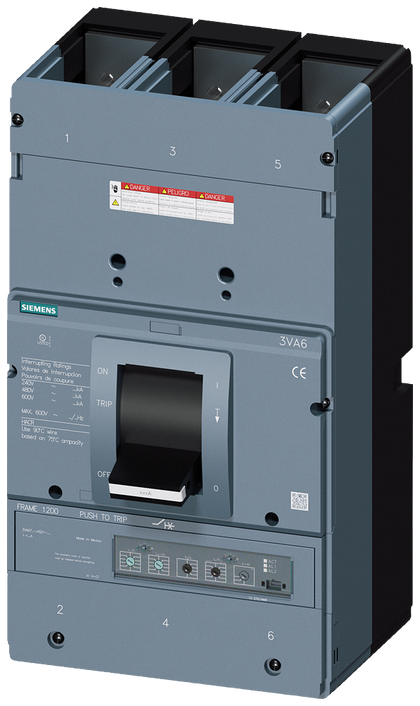

3VA6712-6HQ31-2AA0 is a Siemens 3VA6 molded case circuit breaker rated for 1200 amperes at 600V AC with 3-pole configuration and electronic trip protection.
This drawout-mounted circuit breaker features an ETU360 LSIG trip unit for line protection with adjustable overload settings from 500A to 1200A. The breaker is rated for breaking capacity class H at 65kA at 480V and includes high in-rush current capability at 450%. It meets global certifications including UL489, CSA22.2, and IEC 60947-2 standards with RoHS compliance.
- Amperage Rating: 1200A
- Voltage Rating: 600V AC
- Number of Poles: 3
- Frame: 3VA6 UL frame
- Trip Unit: ETU360 LSIG electronic
- Mounting: Drawout design
- Breaking Capacity: 65kA @ 480V (Class H)
- Overload Protection: Adjustable Ir 500A-1200A
- Certifications: UL489, CSA22.2, IEC 60947-2, RoHS
- In-rush Capability: 450%
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3VA6712-6HQ31-2AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600V AC
- Amperage : 1200
- Poles : 3
- AIC rating : 65kA@480V
- Functions : LSIG
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Trip Type : ETU360
Product Data
- UPC : 195125332614
- GTIN : 00195125332614
- Country of Origin : Mexico
- Dimensions : 18.504 x 11.811 x 9.646 inch
- Weight : 56.769 lb
- Standards : UL Listed
- Certification : UL Listed
