Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA6610-6HN32-0AA0

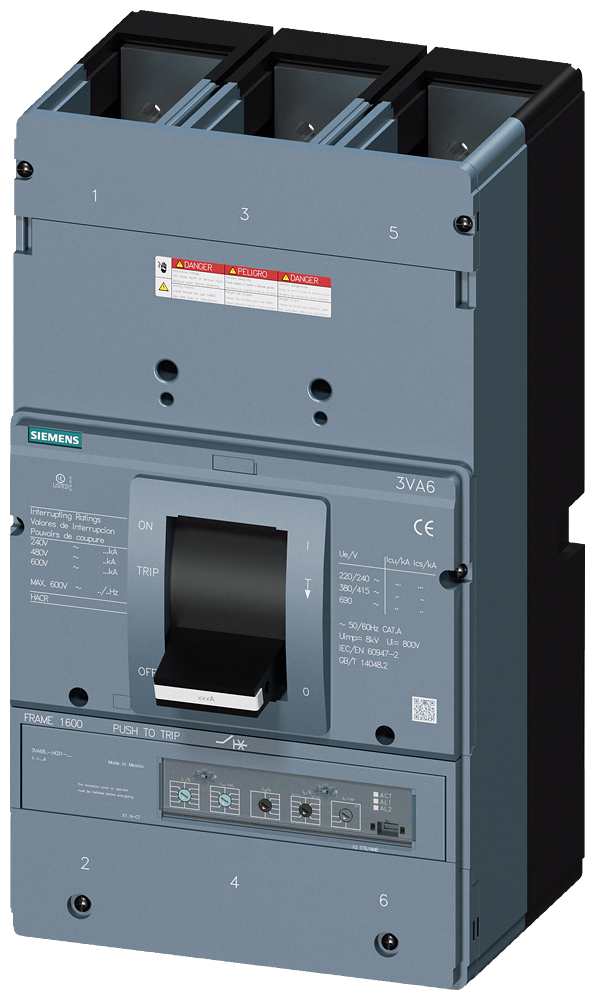

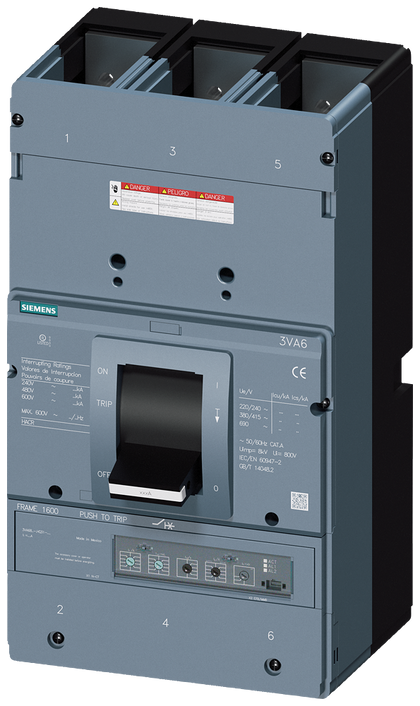

3VA6610-6HN32-0AA0 is a Siemens 3VA6 molded case circuit breaker with electronic trip unit for low voltage applications.The 3VA66 frame breaker offers medium class H breaking capacity, rated at 1000A with 3 poles, lug terminal/nut keeper connections, and ETU350 LSI trip unit. It provides 65kAIC at 480V and 22kAIC at 600V interrupting ratings, suitable for line protection in industrial panels.
- Part Number: 3VA6610-6HN32-0AA0
- Manufacturer: Siemens
- Amperage Rating: 1000A
- Number of Poles: 3
- Frame Size: 3VA66 / 3VA6 UL Frame 1000
- Interrupt Rating: 65kAIC at 480V, 22kAIC at 600V
- Breaking Capacity: Class H (medium)
- Trip Unit: ETU350 LSI
- Connection Type: Lug terminal / nut keeper
- Frequency: 50/60 Hz
- Enclosure Type: IP40
Specifications
- Part Number: 3VA6610-6HN32-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 1000
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Trip Type : ETU350
Product Data
- UPC : 80476698052
- GTIN : 00804766980527
- Country of Origin : Mexico
- Dimensions : 14.173 x 9.764 x 7.008 inch
- Weight : 30.677 lb
- Standards : UL Listed
- Certification : UL Listed
