Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA6580-7JP32-0AA0

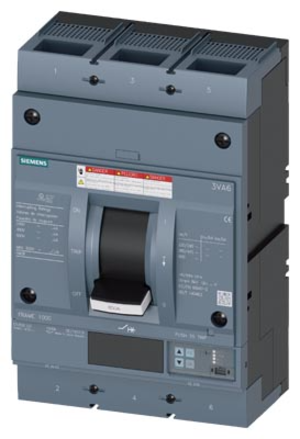

3VA6580-7JP32-0AA0 is a Siemens 3VA6 molded case circuit breaker rated at 800A, 600VAC, 3-pole with LSI electronic trip unit.This UL-listed circuit breaker features a 3VA frame size 800, breaking capacity class C with 100 kA at 480V, line protection via ETU550 trip unit offering long-time, short-time, and instantaneous functions, overload protection at 315-320A Ir, and suitability for reverse feed applications. It is a bolt-on mount type without lugs and includes LCD display.
- Manufacturer: Siemens
- Amperage: 800A
- Voltage: 600VAC
- Poles: 3
- Frame/Series: 3VA6 UL Frame 800
- Trip Unit: ETU550, LSI
- Interrupt Rating: 100 kA @ 480V, 50 kA @ 600V
- Mounting Type: Bolt-On
- Protection: Line, Overload Ir=315-320A
- Features: LCD, Reverse Feed Suitable, Non-Interchangeable
Specifications
- Part Number: 3VA6580-7JP32-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 800
- Poles : 3
- AIC rating : 100kA@480V
- Functions : LSI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Trip Type : ETU550
Product Data
- Country of Origin : Mexico
- Dimensions : 14.173 x 9.843 x 7.087 inch
- Weight : 29.321
- Standards : UL Listed
- Certification : UL Listed
