Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA6580-7HL32-0AA0

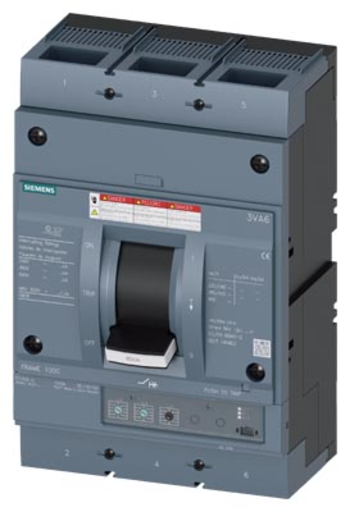

3VA6580-7HL32-0AA0 is a Siemens SENTRON molded case circuit breaker designed for low voltage power distribution with electronic trip protection. This 3-pole breaker features an ETU320 trip unit with Long-time and Instantaneous (LI) protection functions, suitable for residential, commercial, and industrial applications including reverse fed configurations. The thermal-magnetic design with electronic trip unit provides reliable overload and short-circuit protection with non-interchangeable trip characteristics.
- Amperage: 800A continuous rated current
- Voltage: 600V AC, 50/60 Hz
- Poles: 3-pole
- Frame: 3VA65
- Trip Unit: ETU320 with LI function
- Interrupt Rating: 100 kA at 480V, 50 kA at 600V, 200 kA at 240V
- Mounting: Bolt-on with dials
- Connection: Lug terminal with nut keeper
- Weight: 29.26 lbs
- Dimensions: 9 in. W x 7 in. H x 14 in. D
- Country of Origin: Czechia
- RoHS Compliant: Yes
Specifications
- Part Number: 3VA6580-7HL32-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 800
- Poles : 3
- AIC rating : 100kA@480V
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Trip Type : ETU320
Product Data
- Country of Origin : Mexico
- Dimensions : 14.173 x 9.843 x 7.087 inch
- Weight : 30.865
- Standards : UL Listed
- Certification : UL Listed
