Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA6580-6HN32-0AA0

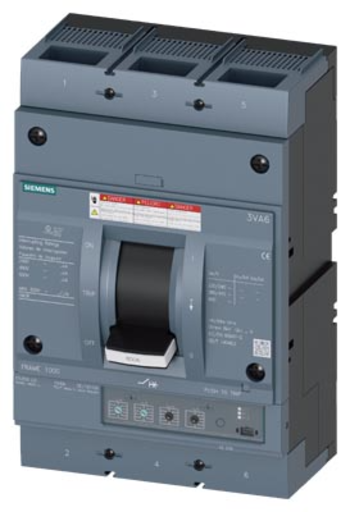

3VA6580-6HN32-0AA0 is a Siemens Sentron 3VA6 molded case circuit breaker with 800A rating and electronic trip unit for low-voltage protection.This 3-pole circuit breaker features 3VA65 800A frame, ETU350 electronic trip with LSI protection, class H breaking capacity rated at 65kA at 480V, and line/load lug terminals. It supports 600V AC maximum voltage, 50/60Hz frequency, and dimensions of 8.3in W x 4.7in D x 12.6in H.
- Part Number: 3VA6580-6HN32-0AA0
- Manufacturer: Siemens
- Type: Molded Case Circuit Breaker
- Amperage Rating: 800A
- Number of Poles: 3
- Frame Size: 3VA65 800A
- Trip Unit: ETU350 Electronic, LSI
- Interrupt Rating: 65kA @ 480V, 35kA @ 600V, 150kA @ 240V
- Voltage Rating: 600V AC
- Frequency: 50/60 Hz
- Connection: Line/Load Lug Terminal/Nut Keeper
- Enclosure Type: IP40
Specifications
- Part Number: 3VA6580-6HN32-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 800
- Poles : 3
- AIC rating : 65kA@480V
- Functions : LSI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Trip Type : ETU350
Product Data
- Country of Origin : Mexico
- Dimensions : 14.173 x 9.843 x 7.087 inch
- Weight : 30.865
- Standards : UL Listed
- Certification : UL Listed
