Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

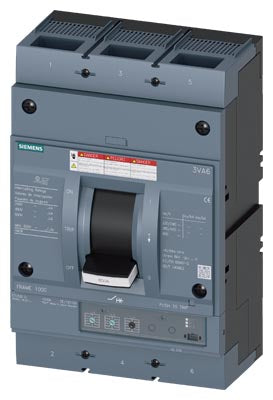

3VA6560-5JQ32-0AA0
3VA6560-5JQ32-0AA0 is a Siemens 3VA6 series UL frame 800 circuit breaker with 600A rating, 3 poles, and class M breaking capacity.
This molded case circuit breaker features ETU560 electronic trip unit with LSIG protection, line protection configuration, adjustable overload protection from 240A to 600A, and 35kA interrupting capacity at 480V. It supports up to 690V rated voltage with neutral conductor upgradeability and integrated ground-fault protection.
Key Specifications
- Manufacturer: Siemens
- Amperage: 600A
- Poles: 3
- Voltage: 480V / 690V
- Frame: 3VA6 UL 800
- Interrupt Rating: 35kA @ 480V (Class M)
- Trip Unit: ETU560 LSIG
- Overload Protection: Ir=240-600A
- Mounting Type: Built-in
- Protection Class: IP40
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3VA6560-5JQ32-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 600
- Poles : 3
- AIC rating : 35kA@480V
- Functions : LSIG
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Trip Type : ETU560
Product Data
- Country of Origin : Mexico
- Dimensions : 14.173 x 9.843 x 7.087 inch
- Weight : 29.321
- Standards : UL Listed
- Certification : UL Listed
