Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA6560-5JP32-0AA0

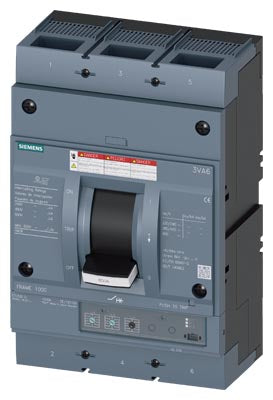

3VA6560-5JP32-0AA0 is a Siemens Sentron 3VA6 molded case circuit breaker with electronic trip unit for industrial power distribution.This 3-pole circuit breaker features a 3VA65 frame size rated for 600A continuous current, UL classification with medium breaking capacity of 35kA at 480V, and ETU550 LSI trip unit providing adjustable overload protection from 240-600A, short-time delay up to 7200A, and instantaneous settings.
- Part Number: 3VA6560-5JP32-0AA0
- Manufacturer: Siemens
- Type: Molded Case Circuit Breaker
- Amperage: 600A
- Poles: 3
- Frame: 3VA65 / 3VA6 UL Frame 800
- Trip Unit: ETU550, LSI, Line Protection
- Interrupt Rating: 35kA at 480V (Class M)
- Overload Setting: 240-600A
- Short-Time Delay: 360-7200A
- Connection: Front, Screw Terminal
- Protection Class: IP40
Specifications
- Part Number: 3VA6560-5JP32-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 600
- Poles : 3
- AIC rating : 35kA@480V
- Functions : LSI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Trip Type : ETU550
Product Data
- Country of Origin : Mexico
- Dimensions : 14.173 x 9.843 x 7.087 inch
- Weight : 29.321
- Standards : UL Listed
- Certification : UL Listed
