Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA6560-5HN32-0AA0

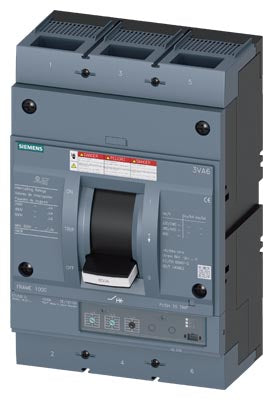

3VA6560-5HN32-0AA0 is a Siemens Sentron 3VA6 molded case circuit breaker with 600A rating, 3 poles, and medium breaking capacity class M.
This UL frame 800 circuit breaker features ETU350 electronic trip unit with LSI protection, line-side terminals, and 100% rating for reliable overload and short-circuit protection in industrial applications. It offers adjustable overload current from 240A to 600A and supports voltages up to 600V AC with specified interrupting ratings.
Key Specifications
- Amperage Rating: 600A
- Voltage Rating: 600V AC
- Number of Poles: 3
- Frame Size: 3VA65 / 800A
- Interrupt Rating: 35kA @ 480V, 25kA @ 600V, 100kA @ 240V
- Trip Unit: ETU350, LSI
- Breaking Capacity Class: M
- Connection: Line/Load Lug Terminal / Nut Keeper
- Frequency: 50/60 Hz
- 100% Rated Breaker
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3VA6560-5HN32-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 600
- Poles : 3
- AIC rating : 35kA@480V
- Functions : LSI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Trip Type : ETU350
Product Data
- Country of Origin : Mexico
- Dimensions : 14.173 x 9.843 x 7.087 inch
- Weight : 29.321
- Standards : UL Listed
- Certification : UL Listed
