2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA6340-0HN31-0AA0

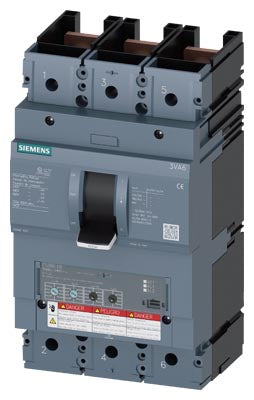

3VA6340-0HN31-0AA0 is a Siemens 3-pole molded case circuit breaker designed for reliable line protection in low voltage applications.This Siemens 3VA63 frame circuit breaker features a 400 ampere rating, 600 VAC voltage rating, and a high interrupting capacity of up to 200 kA at 480 V. It includes an ETU350 electronic trip unit with LSI (long-time, short-time, and instantaneous) protection functions and overload protection set at 160 A. The breaker is bolt-on mounted and UL listed with Class E breaking capacity.
- Key Specifications
- Amperage: 400 A
- Voltage: 600 VAC
- Poles: 3
- Frame Type: 3VA63
- Interrupt Rating: 200 kA at 480 V, 100 kA at 600 V
- Trip Unit: ETU350 with LSI protection
- Overload Protection: 160 A
- Mounting Type: Bolt-On
- Certifications: UL Listed
- Part Number: 3VA6340-0HN31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 480V
- Amperage : 400
- Poles : 3
- AIC rating : 200kA@480V
- Connection : Feed-Thru
- Functions : LSI - Long Time, Short Time and Instantaneous
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Weight : 18
- Standards : UL Listed
- Certification : UL Listed
