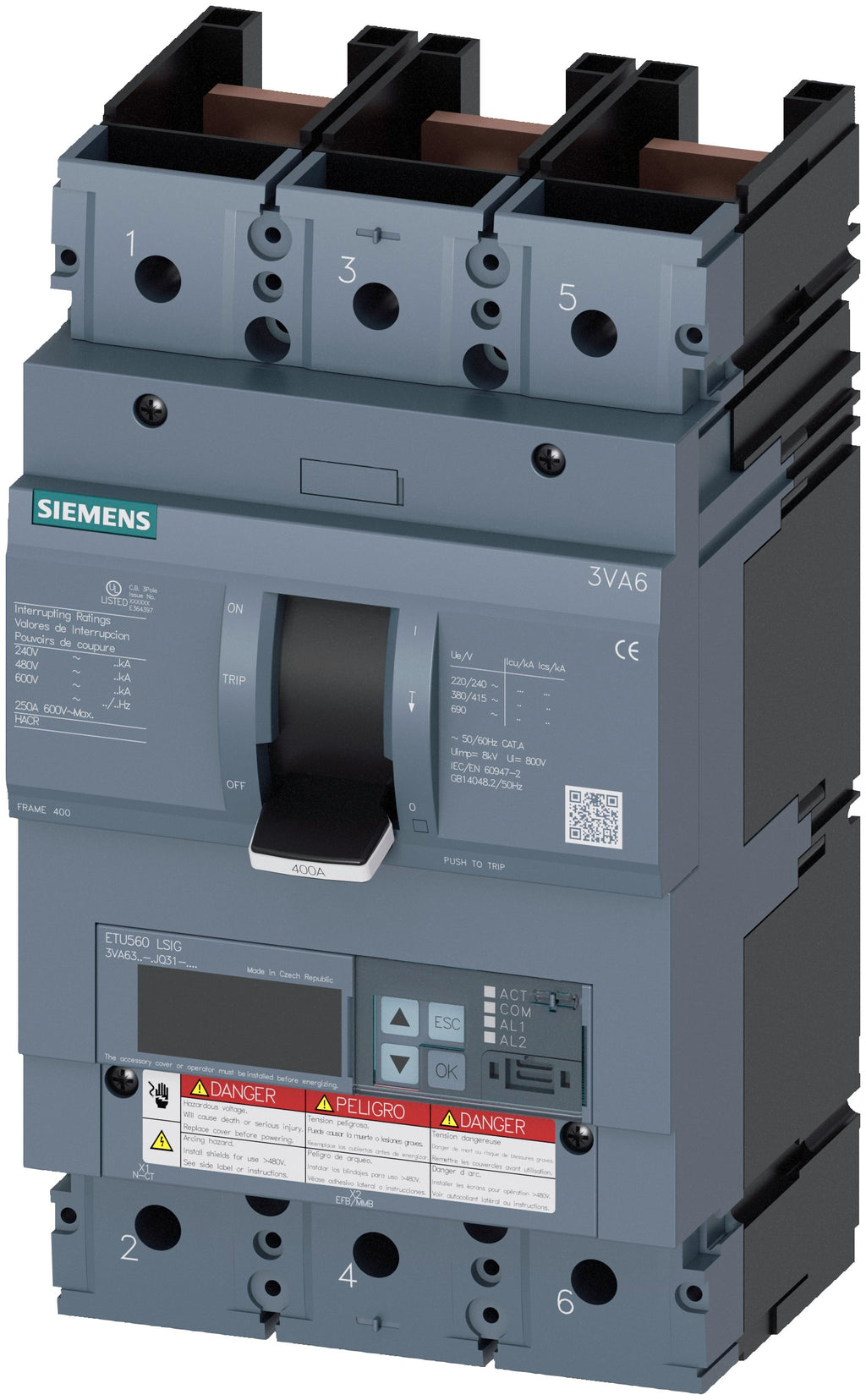

3VA63258JQ310AA0 - Siemens 250A 600V 3-Pole 3VA63 Frame Molded Case Circuit Breaker with Electronic Trip Unit

3VA63258JQ310AA0

3VA63258JQ310AA0 is a Siemens Sentron molded case circuit breaker designed for low-voltage power distribution in industrial, infrastructure, and building applications.

This 3-pole circuit breaker features an electronic trip unit (ETU560) with Long Time, Short Time, Instantaneous, and Ground Fault (LSIG) protection functions. The unit is rated for 250 amperes at 600 volts AC and provides bolt-on mounting. It delivers a maximum breaking capacity of 200 kA at 240V, 150 kA at 480V, and 50 kA at 600V according to UL 489 standards. The breaker is suitable for reverse fed applications and includes adjustable protection parameters for customized system integration.

• Amperage Rating: 250A
• Voltage Rating: 600V AC
• Poles: 3-Phase
• Frame Type: 3VA63
• Trip Unit: Electronic (ETU560) with LSIG Functions
• Mounting: Bolt-On
• Breaking Capacity (UL 489): 150 kA at 480V
• Interrupt Rating: 100K AIC
• Frequency: 50/60 Hz
• Mechanical Life: 15,000 cycles
• Electrical Life: 6,000 cycles at 380/415V

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3VA63258JQ310AA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : 3VA
• Connection : Feed-Thru
• Temp Rating : -13¡F-158¡F (-25¡C-70¡C)

Product Data

• UPC : 80476631358
• GTIN : 00804766313585
• Weight : 11.685
• Standards : UL Listed
• Certification : UL Listed
