Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA6225-0HL31-0AA0

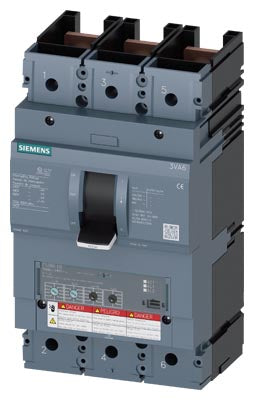

3VA6225-0HL31-0AA0 is a Siemens 3VA6 molded case circuit breaker with electronic trip unit, 3-pole, 250A rating, and class E breaking capacity.This UL-listed breaker features a 3VA62 frame size, ETU320 trip unit with LI protection (long-time and instantaneous), adjustable overload from 100A to 250A, and short-circuit protection up to 10x In. It provides 200kA interrupting capacity at 480V and 100kA at 600V, suitable for line protection in industrial applications.
- Part Number: 3VA6225-0HL31-0AA0
- Manufacturer: Siemens
- Amperage: 250A
- Voltage: 600V AC
- Poles: 3
- Frame: 3VA6 / 3VA62, 250A
- Trip Unit: ETU320, LI
- Interrupt Rating: 200kA @ 480V, 100kA @ 600V
- Breaking Capacity Class: E
- Protection: Line, overload Ir=100-250A, short-circuit Ii=1.5-10x In
Specifications
- Part Number: 3VA6225-0HL31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 480V
- Amperage : 250
- Poles : 3
- AIC rating : 200kA@480V
- Connection : Feed-Thru
- Functions : LI - Long Time and Instantaneous
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
Product Data
- Weight : 14
- Standards : UL Listed
- Certification : UL Listed
