Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA61105JQ310AA0

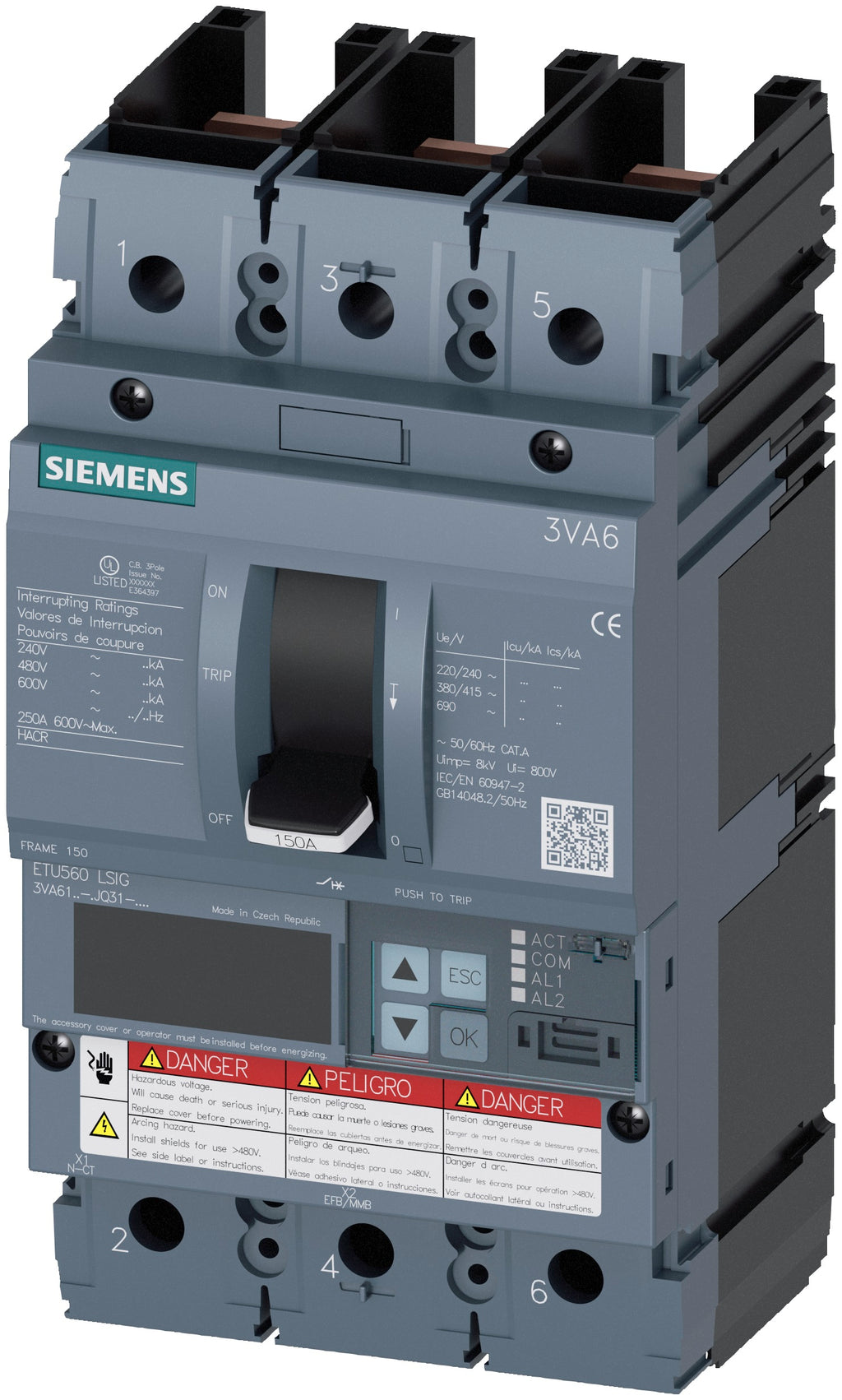

3VA61105JQ310AA0 is a Siemens 3VA molded case circuit breaker rated at 100A, 3-pole, 600V AC with LSIG electronic trip unit.
This bolt-on breaker from the 3VA6 series features ETU560 trip unit with long-time, short-time, instantaneous, and ground fault protection, LCD display, and non-interchangeable trip. It offers medium breaking capacity including 35kA at 480V and 18kA at 600V per UL standards, suitable for line protection in reverse-fed applications. Does not include lugs.
Key Specifications
- Amperage: 100A
- Voltage: 600V AC
- Poles: 3
- Frame/Series: 3VA6 UL frame 150
- Trip Unit: ETU560 LSIG electronic
- Breaking Capacity: 35kA at 480V, 18kA at 600V (UL)
- Mounting: Bolt-on
- Protection: Overload Ir=40-100A, short-circuit Isd=0.6-10xIn, Ii=1.5-12xIn, ground fault Ig=0.2-1xIn
- Certifications: UL 489, IEC 60947-2, CSA 22.2
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3VA61105JQ310AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Connection : Feed-Thru
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
Product Data
- UPC : 80476630699
- GTIN : 00804766306990
- Weight : 4.594
- Standards : UL Listed
- Certification : UL Listed
