2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5712-6EC31-0AA0

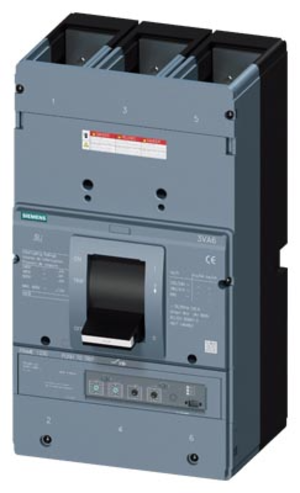

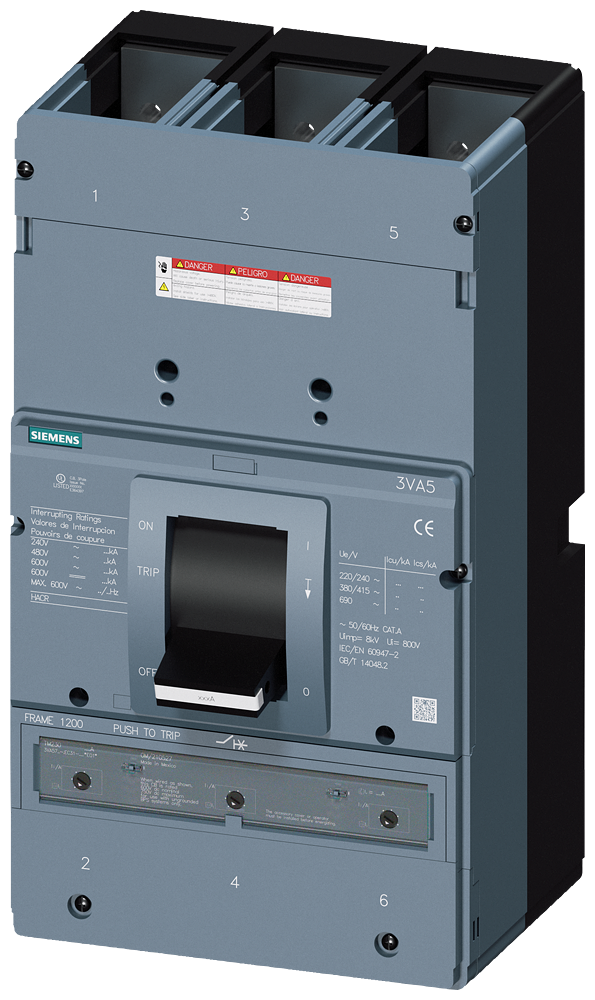

3VA5712-6EC31-0AA0 is a Siemens 3-pole circuit breaker rated for 1200 amps and 600 volts, designed for reliable power distribution protection.This Siemens 3VA5 frame circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions. It has a 65kA interrupting rating at 480V, supports reverse fed applications, and includes load side lug terminals. The breaker is bolt-on mounted and suitable for residential, commercial, and industrial use.
- Key Specifications
- Amperage: 1200A
- Voltage: 600V AC
- Poles: 3
- Frame: 3VA5
- Interrupt Rating: 65kA @ 480V
- Trip Unit: Thermal Magnetic (TM230)
- Mounting Type: Bolt-On
- Suitable for Reverse Fed Applications
- Load Side Lug Terminals
- Non-Interchangeable Trip
- UL Listed
Specifications
- Part Number: 3VA5712-6EC31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600V AC
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed Through
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM230
Product Data
- UPC : 195125331143
- GTIN : 00195125331143
- Country of Origin : Mexico
- Dimensions : 18.504 x 11.811 x 9.646 inch
- Weight : 54.135 lb
- Standards : UL Listed
- Certification : UL Listed
