Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5580-7EC32-0AA0

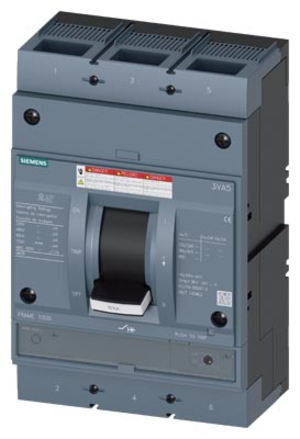

3VA5580-7EC32-0AA0 is a Siemens Sentron molded case circuit breaker with 3VA55 frame, 800A rating, and class C breaking capacity.This 3-pole thermal-magnetic circuit breaker features TM230 trip unit with fixed Ir=800A and adjustable Ii from 4000-8000A. It provides 100kA interrupt rating at 480V AC and 50kA at 600V AC, suitable for line protection in industrial applications. Rated for 600V AC/500V DC with IP40 enclosure and line/load side lug terminals.Key Specifications
- Part Number: 3VA5580-7EC32-0AA0
- Manufacturer: Siemens
- Amperage Rating: 800A
- Voltage Rating: 600V AC / 500V DC
- Number of Poles: 3
- Frame Size: 3VA55 800A
- Trip Unit: TM230 Thermal-Magnetic
- Overload Protection Ir: 800A fixed
- Short-Circuit Protection Ii: 4000-8000A adjustable
- Interrupt Rating: 100kA @ 480V, 50kA @ 600V, 200kA @ 240V
- Frequency: 50/60 Hz
Specifications
- Part Number: 3VA5580-7EC32-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 800
- Poles : 3
- AIC rating : 100kA@480V
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Trip Type : TM230
Product Data
- UPC : 804766978692
- GTIN : 00804766978692
- Country of Origin : Mexico
- Dimensions : 14.173 x 9.843 x 7.087 inch
- Weight : 29.948
- Standards : UL Listed
- Certification : UL Listed
