Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

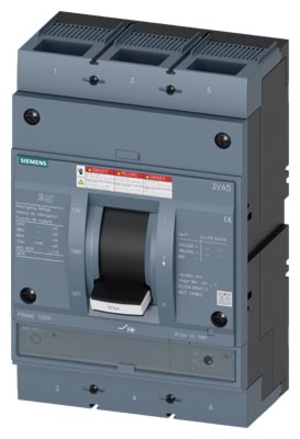

3VA5580-6EC32-0AA0
3VA5580-6EC32-0AA0 is a Siemens 3VA5 series molded case circuit breaker designed for reliable low voltage protection.This circuit breaker features a 3-pole configuration with an 800 ampere rating and is rated for 480 volts. It includes a thermal-magnetic trip unit (TM230) for overload and short circuit protection. The breaker has a medium (Class H) interrupting capacity of 65 kA at 480V and 22 kA at 600V, suitable for demanding industrial applications. It complies with UL and CSA certifications and is designed for panel or frame mounting.
- Key Specifications
- Amperage: 800 A
- Voltage: 480 V
- Number of Poles: 3
- Frame/Series: 3VA5
- Trip Unit: Thermal-Magnetic (TM230)
- Interrupt Rating: 65 kA at 480 V, 22 kA at 600 V
- Mounting Type: Frame-mounted
- Certifications: UL, CSA
- Breaking Capacity Class: Medium (Class H)
- Part Number: 3VA5580-6EC32-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 800
- Poles : 3
- AIC rating : 65kA@480V
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Trip Type : TM230
- UPC : 804766978647
- GTIN : 00804766978647
- Country of Origin : Mexico
- Dimensions : 14.173 x 9.843 x 7.087 inch
- Weight : 30.181
- Standards : UL Listed
- Certification : UL Listed
