Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5570-6EC32-0AA0

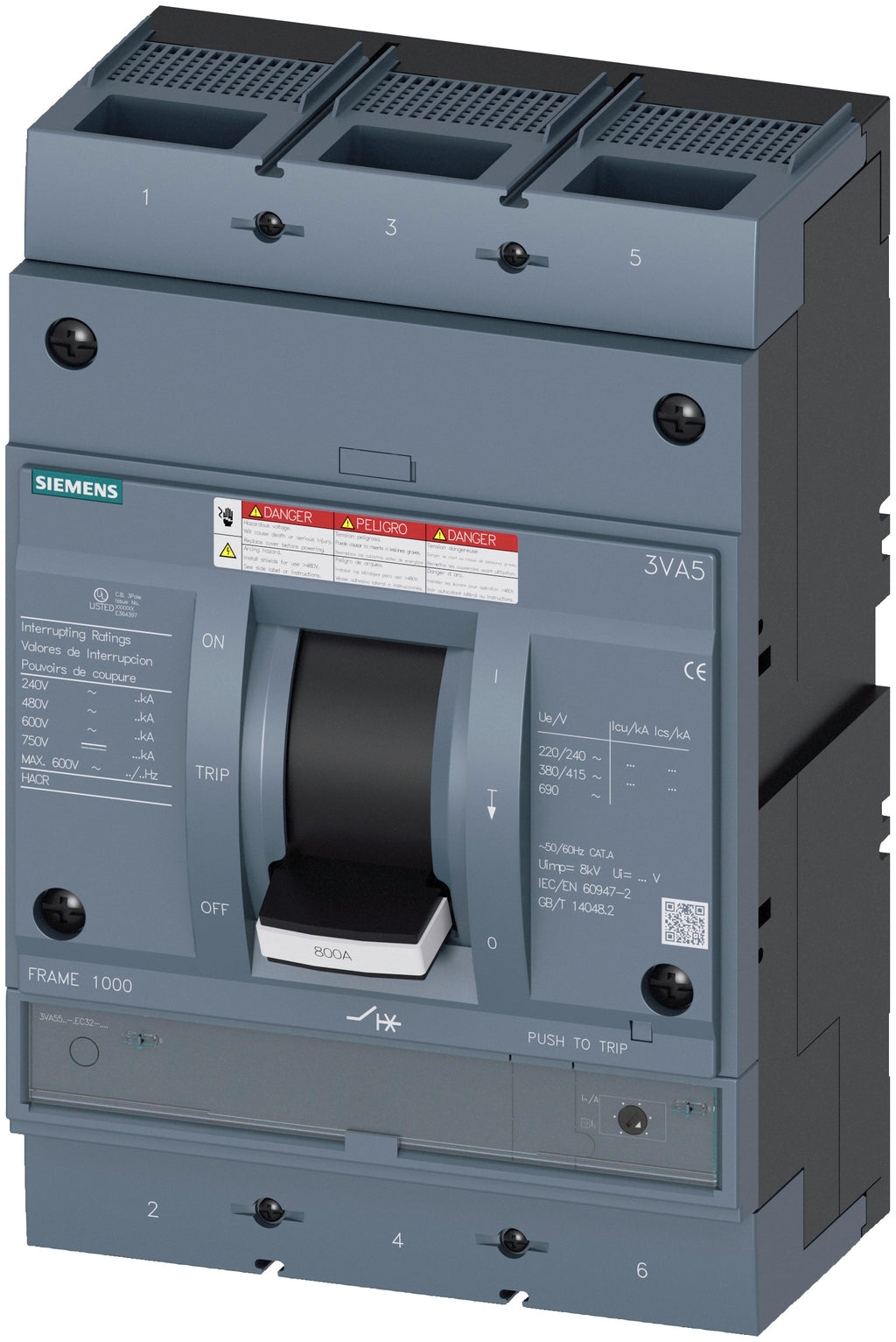

3VA5570-6EC32-0AA0 is a Siemens 3-pole molded case circuit breaker with a 700 Amp rating designed for reliable thermal magnetic protection.This Siemens 3VA55 frame circuit breaker features a 700A current rating, thermal magnetic trip unit, and an interrupting capacity of 22kA at 600V and 65kA at 480V. It is UL listed and RoHS compliant, providing robust overload and short-circuit protection with connection via lug terminal and nut keeper.
- Manufacturer: Siemens
- Series: 3VA
- Frame Type: 3VA55
- Amperage: 700A
- Poles: 3
- Voltage Rating: 600V/480V
- Interrupting Rating: 22kA at 600V, 65kA at 480V
- Trip Unit: Thermal Magnetic
- Mounting Type: Lug Terminal with Nut Keeper
- Certifications: UL Listed, RoHS Compliant
Specifications
- Part Number: 3VA5570-6EC32-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 700
- Poles : 3
- AIC rating : 65kA@480V
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Compatible Frames : 3VA55
- Trip Type : TM230
Product Data
- UPC : 804766978449
- GTIN : 00804766978449
- Country of Origin : Mexico
- Dimensions : 14.173 x 9.843 x 7.087 inch
- Weight : 29.568
- Standards : UL Listed
- Certification : UL Listed
