Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5570-5EC32-0AA0

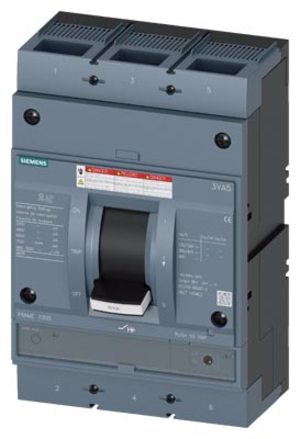

3VA5570-5EC32-0AA0 is a Siemens Sentron molded case circuit breaker designed for low voltage power distribution in residential, commercial, and industrial applications. This 3-pole breaker features a 700 ampere rating, thermal magnetic trip protection, and bolt-on mounting for reliable overcurrent and short circuit protection. The TM230 trip unit provides both long time and instantaneous trip functions with fixed Ir and adjustable Ii settings, making it suitable for reverse fed applications.
- Amperage Rating: 700 A
- Voltage Rating: 480V AC / 600V AC / 240V AC
- Number of Poles: 3
- Frame Size: 3VA55 800A
- Interrupt Rating: 35 kA at 480V, 18 kA at 600V, 85 kA at 240V
- Trip Type: Thermal Magnetic (TM230)
- Trip Range: 3000 to 6000 A
- Mounting: Bolt-On
- Connection Type: Line/Load Side Lug Terminal with Nut Keeper
- Enclosure Type: IP40
- Frequency Rating: 50/60 Hz
- Operating Temperature: -25 to 70 deg C
- Certifications: UL, IEC
Specifications
- Part Number: 3VA5570-5EC32-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 700
- Poles : 3
- AIC rating : 35kA@480V
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Trip Type : TM230
Product Data
- UPC : 804766978395
- GTIN : 00804766978395
- Country of Origin : Mexico
- Dimensions : 14.173 x 9.843 x 7.087 inch
- Weight : 29.394
- Standards : UL Listed
- Certification : UL Listed
