Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5460-7EC31-0AA0

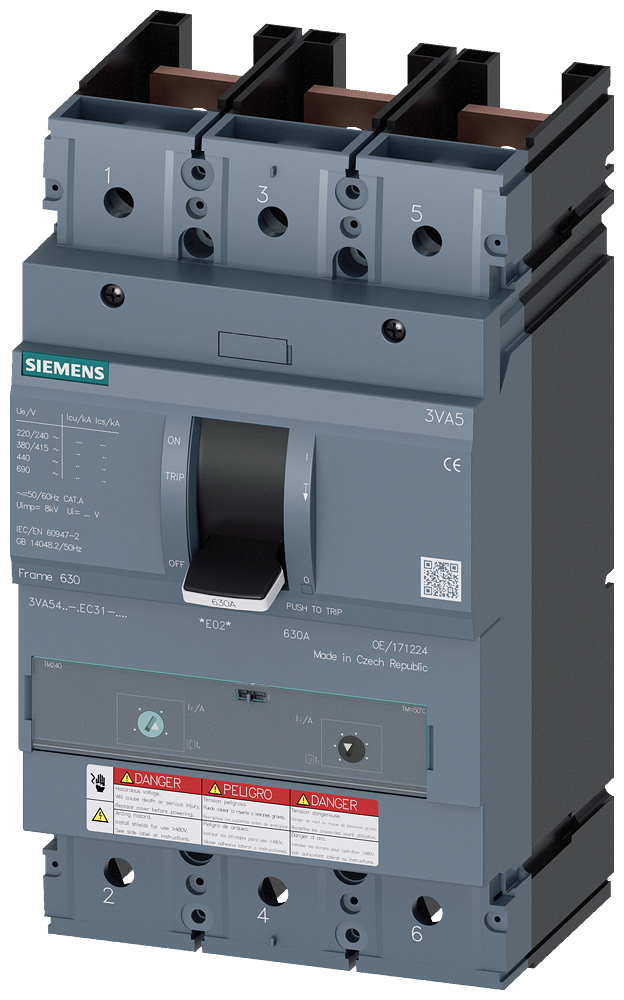

3VA5460-7EC31-0AA0 is a Siemens 3VA5 series molded case circuit breaker with 600A rating, 3 poles, and thermal-magnetic trip unit for reliable overcurrent protection.This UL 489 listed circuit breaker features a 600A frame size, TM230 line protection trip unit with fixed thermal-magnetic (LI) settings, rated insulation voltage of 800V, and maximum operational voltage of 600V AC. It offers high breaking capacity including 200kA at 240V, 100kA at 480V, and 35kA at 600V per UL standards, with dimensions of 9.8 inches in height. HACR rated for air conditioning, refrigeration, and heating applications.
- Part Number: 3VA5460-7EC31-0AA0
- Manufacturer: Siemens
- Series/Frame: 3VA5 / 600A
- Poles: 3
- Rated Continuous Current: 600A
- Rated Insulation Voltage Ui: 800V
- Max Operational Voltage Ue AC: 600V
- Trip Unit: TM230 (LI protection)
- Overload Protection Ir: 600A fixed
- Short-circuit Protection Ii: 2400-4800A adjustable
- UL Breaking Capacity @480V: 100kA
- UL Breaking Capacity @600V: 35kA
Specifications
- Part Number: 3VA5460-7EC31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Amperage : 600
- Poles : 3
- AIC rating : 100kA@480V
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Compatible Frames : 3VA54
Product Data
- UPC : 804766792434
- GTIN : 804766792434
- Weight : 10.4 lb
- Standards : UL Listed
- Certification : UL Listed
