Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5330-6EF31-0AA0

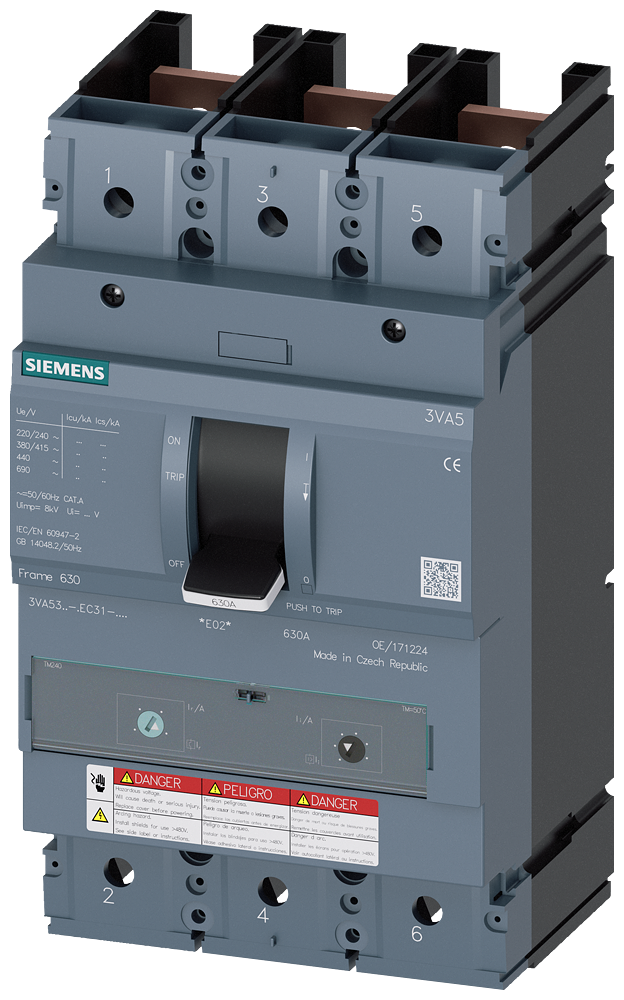

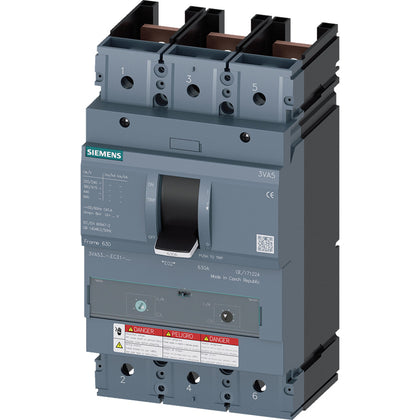

3VA5330-6EF31-0AA0 is a Siemens 3VA5 series molded case circuit breaker rated at 300A with thermal magnetic trip protection.This 3-pole circuit breaker features a 3VA53 frame, UL frame 400 design, and breaking capacity class H with 65kA at 480V and 25kA at 600V interrupting ratings. It provides reliable line protection with TM240 trip unit, ATAM overload protection at Ir=240A, and supports 600VAC/500VDC operation.
- Amperage: 300A
- Poles: 3
- Voltage Rating: 600VAC, 500VDC
- Frame: 3VA53, UL Frame 400
- Trip Unit: Thermal Magnetic, TM240
- Interrupt Rating: 25kAIC@600V, 65kAIC@480V, 100kAIC@240V
- Breaking Capacity: Class H
- Protection: Line/Overload, Ir=240A
- Approval: UL Listed
- Series: 3VA5/Sentron
Specifications
- Part Number: 3VA5330-6EF31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Amperage : 300
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Compatible Frames : 3VA53
Product Data
- UPC : 80476679315
- GTIN : 00804766793158
- Weight : 5.19
- Standards : UL Listed
- Certification : UL Listed
