Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5322-5EF31-0AA0

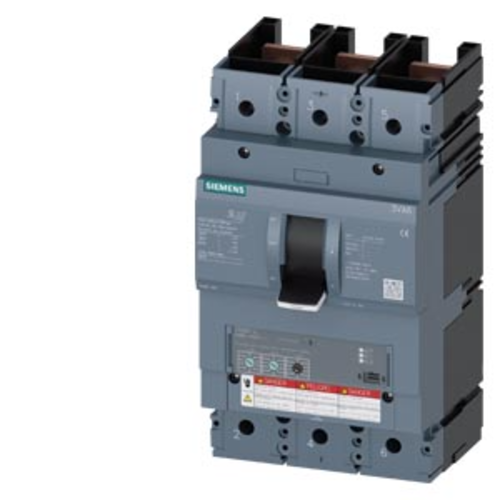

3VA5322-5EF31-0AA0 is a Siemens 3VA5 molded case circuit breaker with thermal-magnetic trip unit for line protection.This 3-pole breaker features TM240 overcurrent release with LI protection, adjustable instantaneous trip at 157.5A, rated current of 225A, and UL frame size 400. It offers breaking capacity class M at 35kA @ 480V, suitable for HACR applications with max operational voltage of 600V AC.
- Part Number: 3VA5322-5EF31-0AA0
- Manufacturer: Siemens
- Amperage: 225A
- Voltage: 600V AC
- Poles: 3
- Frame: 3VA5 UL 400
- Trip Unit: TM240 thermal-magnetic
- Protection: LI (Long-time, Instantaneous)
- Ir Setting: 157.5A
- Interrupt Rating: 35kA @ 480V
- Insulation Voltage Ui: 800V
- HACR Rated: Yes
Specifications
- Part Number: 3VA5322-5EF31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Compatible Frames : 3VA53
Product Data
- UPC : 80476679332
- GTIN : 00804766793325
- Weight : 5.19
- Standards : UL Listed
- Certification : UL Listed
