Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5270-5ED31-0AA0

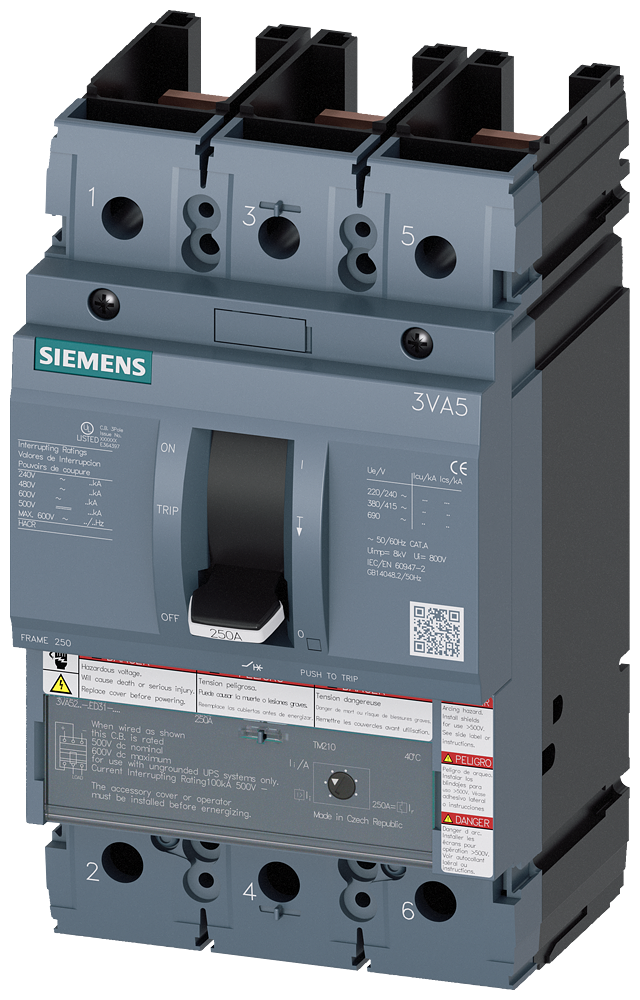

3VA5270-5ED31-0AA0 is a Siemens Sentron 3VA5 molded case circuit breaker designed for low voltage power distribution in residential, commercial, and industrial applications. This 3-pole breaker provides thermal magnetic protection with long time and instantaneous trip functions, suitable for reverse fed applications with non-interchangeable trip units and load side lug terminals. The breaker features a UL Frame 250 classification with bolt-on mounting and is available in current and legacy Siemens models. Key Specifications
- Manufacturer: Siemens
- Part Number: 3VA5270-5ED31-0AA0
- Series: 3VA5 Sentron
- Amperage: 70A
- Voltage Rating: 480V AC (rated operational voltage 415V AC per IEC 60947-2)
- Poles: 3
- Frame Type: UL Frame 250
- Interrupt Rating: 35 kA @ 480V
- Trip Unit: TM210 thermal magnetic with FTFM (long time and instantaneous)
- Mounting: Bolt-on
- Terminal Type: Load side lug terminals
- Trip Function: Non-interchangeable
Specifications
- Part Number: 3VA5270-5ED31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 480V
- Amperage : 70
- Poles : 3
- AIC rating : 35kA@480V
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
Product Data
- UPC : 804766811302
- Weight : 4.47 lb
- Standards : UL Listed
- Certification : UL Listed
