Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5180-6EF31-0AA0

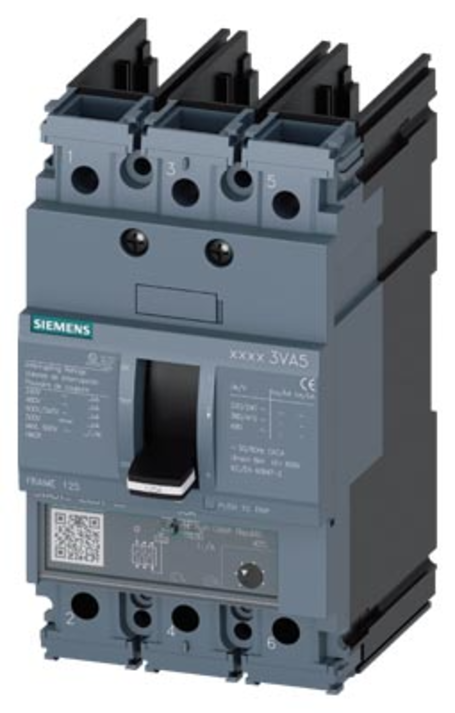

3VA5180-6EF31-0AA0 is a Siemens Sentron low voltage molded case circuit breaker designed for reliable power distribution protection.This Siemens 3VA51 frame circuit breaker features an 80 ampere rating, 3 poles, and supports voltages up to 690 VAC and 500 VDC. It includes a thermal magnetic trip unit for overload and short circuit protection, with interrupt ratings of 25 kA at 600Y/347 V, 65 kA at 480 V, and 150 kA at 240 V. The breaker has front terminal connections, an IP40 enclosure rating, and operates within a temperature range of -40 to 70 degrees Celsius.
- Key Specifications
- Amperage: 80 A
- Voltage Rating: 690 VAC / 500 VDC
- Number of Poles: 3
- Frame: 3VA51
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 25 kA @ 600Y/347 V, 65 kA @ 480 V, 150 kA @ 240 V
- Mounting Type: Front Terminal
- Enclosure Type: IP40
- Frequency: 50/60 Hz
- Operating Temperature: -40 to 70 °C
- Dimensions: 5.5 in H x 3 in W x 3.7 in D
- Certifications: UL Listed
- Part Number: 3VA5180-6EF31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Poles : 3
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Trip Type : TM240
- UPC : 804766780004
- GTIN : 00804766780004
- Country of Origin : Mexico
- Dimensions : 5.945 x 3.386 x 4.803 inch
- Weight : 2.094 lb
- Standards : UL Listed
- Certification : UL Listed
