Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5170-4EF31-0AA0

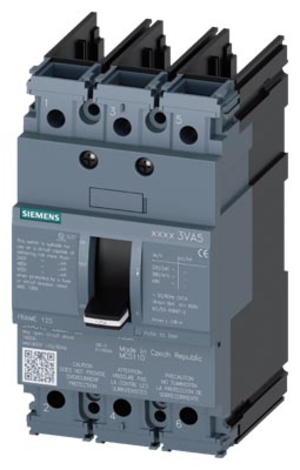

3VA5170-4EF31-0AA0 is a Siemens 3-pole molded case circuit breaker with a 70 amp rating and 480V voltage capacity designed for reliable circuit protection.3VA5170-4EF31-0AA0 features a 3VA5 series frame with a thermal magnetic trip unit (TM240) providing overload and short circuit protection. It has a 25kA interrupting rating at 480V and is UL and IEC certified, suitable for DIN rail mounting. This breaker offers line protection with adjustable overload protection from 56A to 70A.
- Manufacturer: Siemens
- Series/Frame: 3VA5 UL Frame 125
- Amperage: 70 Amps
- Voltage Rating: 480V AC
- Poles: 3
- Interrupting Rating: 25kA at 480V (Class S)
- Trip Unit: Thermal Magnetic (TM240)
- Mounting Type: DIN Rail
- Certifications: UL, IEC
- Overload Protection Range: 56A to 70A
Specifications
- Part Number: 3VA5170-4EF31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 70
- Poles : 3
- AIC rating : 25kA@480V
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Trip Type : TM240
Product Data
- UPC : 804766779657
- GTIN : 00804766779657
- Country of Origin : Mexico
- Dimensions : 5.945 x 3.386 x 4.803 inch
- Weight : 2.067
- Standards : UL Listed
- Certification : UL Listed
