Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5120-5ED21-0AA0

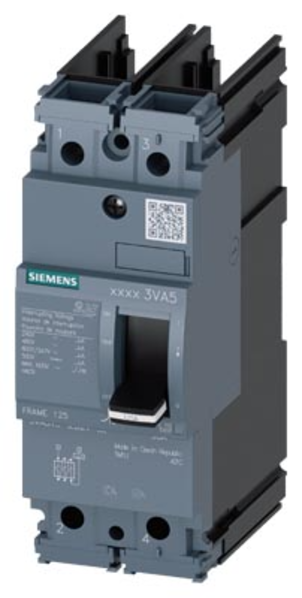

3VA5120-5ED21-0AA0 is a Siemens 3VA5 molded case circuit breaker designed for line protection with thermal-magnetic trip unit.This 2-pole circuit breaker from the 3VA5 UL frame 125 series features fixed thermal and fixed magnetic protection, In=20A overload protection Ir=20A, and short-circuit protection Ii=15 x In. It offers breaking capacity class M with 35kA at 480V per UL 489, insulation voltage of 600V, and operational current of 20A at 40C.
- Poles: 2
- Frame Size: 3VA5 UL 125
- Amperage: 20A
- Interrupt Rating: 35kA @ 480V (UL 489)
- Interrupt Rating: 85kA @ 240V
- Interrupt Rating: 18kA @ 600Y/347V
- Trip Unit: TM210 FTFM
- Overload Protection: Ir=20A fixed
- Short-Circuit Protection: Ii=15 x In fixed
- Insulation Voltage: 600V
- UL Category: Line protection
Specifications
- Part Number: 3VA5120-5ED21-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 415V AC
- Amperage : 20
- Poles : 2
- AIC rating : 35kA@480V
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Trip Type : TM210
Product Data
- UPC : 804766778087
- GTIN : 00804766778087
- Country of Origin : Mexico
- Dimensions : 5.748 x 4.055 x 2.362 inch
- Weight : 1.433
- Standards : UL Listed
- Certification : UL Listed
