Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

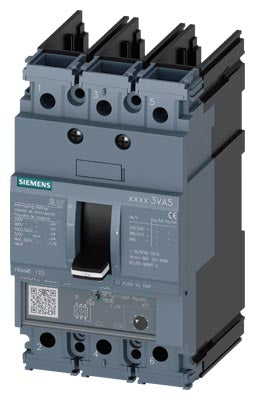

3VA5120-4EF31-0AA0
3VA5120-4EF31-0AA0 is a Siemens 3-pole circuit breaker rated for 20 amps and 480 volts, designed for reliable electrical protection.This circuit breaker features a 3VA5 UL Frame 125 with a Class S breaking capacity of 25kA at 480V. It includes a thermal-magnetic trip unit TM240 with ATAM line protection, providing precise overload and short-circuit protection. The breaker supports a current rating of 20A with adjustable overload protection from 16A to 20A. It is suitable for DIN rail mounting and complies with UL certifications.
- Key Specifications
- Amperage: 20A
- Voltage Rating: 480V AC
- Poles: 3
- Frame Type: 3VA5 UL Frame 125
- Interrupt Rating: 25kA @ 480V (Class S)
- Trip Unit: Thermal-Magnetic TM240 with ATAM
- Mounting Type: DIN Rail
- Overload Protection Range: 16A to 20A
- Certifications: UL Listed
- Part Number: 3VA5120-4EF31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 20
- Poles : 3
- AIC rating : 25kA@480V
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Trip Type : TM240
- UPC : 804766778056
- GTIN : 00804766778056
- Country of Origin : Mexico
- Dimensions : 5.945 x 3.386 x 4.803 inch
- Weight : 2.075
- Standards : UL Listed
- Certification : UL Listed
