Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA4195-6ED24-0AA0

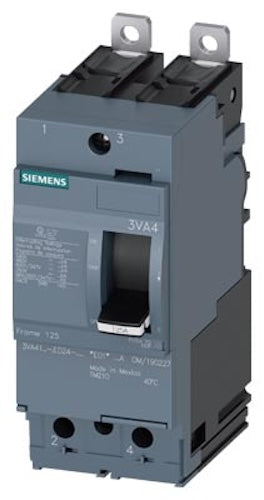

3VA4195-6ED24-0AA0 is a Siemens 3VA4 molded case circuit breaker rated at 15A, 2-pole with 65kA interrupt rating at 480V.This UL frame 125 breaker features TM210 thermal magnetic trip unit with fixed long-time and instantaneous protection (FTFM), Ir=15A overload and Ii=20xIn short-circuit. It offers bolt-on mounting, line protection, and suitability for switching duty (SWD) and HID applications. Rated operational voltage is 415V AC with breaking capacities up to 100kA at 240V and 25kA at 600Y/347V.
- Manufacturer: Siemens
- Part Number: 3VA4195-6ED24-0AA0
- Amperage: 15A
- Poles: 2
- Frame: 3VA4 UL 125
- Voltage: 600V max, 415V rated
- Interrupt Rating: 65kA @ 480V, 100kA @ 240V
- Trip Unit: TM210, FTFM, LI
- Mounting: Bolt-On
- Connection: Clamp/Lug terminals
Specifications
- Part Number: 3VA4195-6ED24-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 480V AC
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766942648
- GTIN : 00804766942648
- Country of Origin : Mexico
- Dimensions : 6.614 x 5.315 x 2.283 inch
- Weight : 1.133
- Standards : UL Listed
- Certification : UL Listed
