3VA41806ED340AA0 - Siemens 80A 600V 3-Pole Circuit Breaker 3VA4 Frame Class H 65kA Interrupt Rating

3VA41806ED340AA0

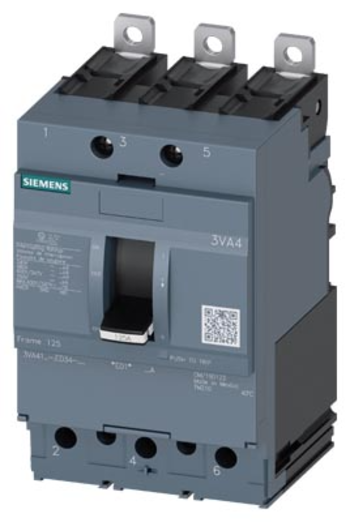

3VA41806ED340AA0 is a Siemens 3-pole molded case circuit breaker with an 80 ampere rating and 600 volt capacity, designed for reliable electrical protection. This circuit breaker features a 3VA4 UL Frame 125 with a class H interrupt rating of 65 kA at 480 V, providing robust short-circuit and overload protection. It includes a TM210 trip unit with fixed thermal-magnetic protection (FTFM) and is suitable for line protection applications.

• Manufacturer: Siemens
• Part Number: 3VA41806ED340AA0
• Frame Type: 3VA4 UL Frame 125
• Amperage: 80 A
• Voltage Rating: 600Y/347V, 480V
• Poles: 3
• Interrupt Rating: 65 kA @ 480 V (Class H)
• Trip Unit: TM210, Fixed Thermal Magnetic (FTFM)
• Mounting Type: Bolt-on
• Overload Protection: Yes
• Short-Circuit Protection: Yes, Ir=80 A permanently set
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3VA41806ED340AA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : 3VA
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 125
• Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 804766944147
• GTIN : 00804766944147
• Country of Origin : Mexico
• Dimensions : 5.315 x 6.299 x 3.465
• Weight : 1.638
• Standards : UL Listed
• Certification : UL Listed
