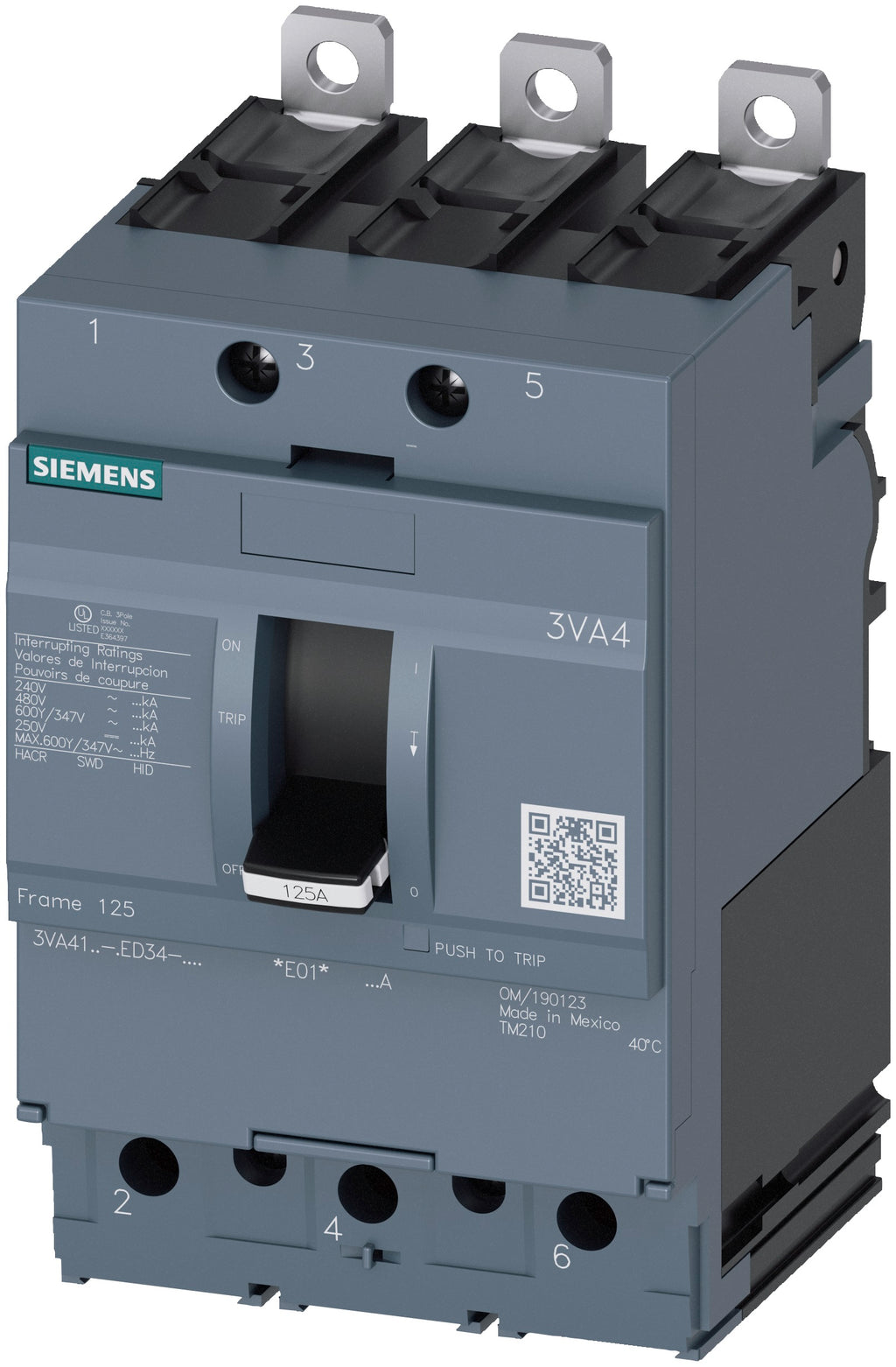

3VA41605ED340AA0 - Siemens 3VA4 60A 3-Pole Molded Case Circuit Breaker 35kA@480V UL Frame 125 TM210 Trip

3VA41605ED340AA0

3VA41605ED340AA0 is a Siemens 3VA4 molded case circuit breaker designed for low voltage electrical distribution and line protection applications. This three-pole breaker provides reliable overcurrent protection with thermal-magnetic trip technology and UL Frame 125 construction.Technical Overview

The 3VA41605ED340AA0 features a 60-ampere rated current with fixed overload protection set at 60A and short-circuit protection at 10 times the rated current. It operates at 480V AC with a medium (Class M) breaking capacity of 35 kA at 480V, 35 kA at 480Y/277V, and 85 kA at 240V. The breaker includes TM210 and FTFM trip units for enhanced protection and control. Operating voltage rating extends to 690V AC maximum. Power loss is 13.9W maximum, with 4.63W per pole at rated current in hot operating state. The device weighs 0.743 kg and features clamp connections for secure installation.

• Part Number: 3VA41605ED340AA0
• Manufacturer: Siemens
• Number of Poles: 3
• Rated Current: 60A
• Voltage Rating: 480V AC
• Maximum Operating Voltage: 690V AC
• Interrupt Rating: 35 kA @ 480V
• Breaking Capacity Class: M (Medium)
• Frame Size: UL Frame 125
• Trip Unit: TM210, FTFM (Thermal-Magnetic)
• Connection Type: Clamp
• Net Weight: 0.743 kg

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3VA41605ED340AA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : 3VA
• Connection : Bolt-On
• Terminal Connection : Load Side Lug
• Frame Size : 125
• Temp Rating : -13¡F-158¡F (-25¡C-70¡C)

Product Data

• UPC : 80476694400
• GTIN : 00804766944000
• Country of Origin : Mexico
• Weight : 1.638
• Standards : UL Listed
• Certification : UL Listed
