Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA4160-4ED24-0AA0

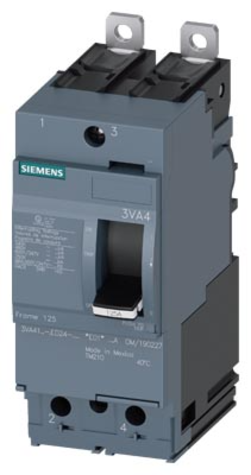

3VA4160-4ED24-0AA0 is a Siemens 3VA4 series 2-pole molded case circuit breaker rated at 60A with thermal-magnetic trip unit.
This UL 489 listed breaker offers 25kA interrupting capacity at 480V, 600V maximum AC voltage rating, and bolt-on mounting with load side lug terminals. It features TM210 trip unit with fixed long-time overload protection at 60A and fixed instantaneous short-circuit protection at 10x In, suitable for line protection in residential, commercial, and industrial applications including reverse feed.
- Part Number: 3VA4160-4ED24-0AA0
- Manufacturer: Siemens
- Amperage: 60A
- Poles: 2
- Frame Size: 3VA41
- Voltage Rating: 600V AC
- Interrupt Rating: 25kA at 480V
- Trip Unit: TM210 (Thermal-Magnetic, Fixed Ir=60A, Ii=10x In)
- Mounting: Bolt-On
- Connection: Clamp/Lug Terminals
- Breaking Capacity Class: S (Standard)
Specifications
- Part Number: 3VA4160-4ED24-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 480V AC
- Amperage : 60
- Phase : 1
- Poles : 2
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766943089
- GTIN : 00804766943089
- Country of Origin : Mexico
- Dimensions : 6.614 x 5.315 x 2.283 inch
- Weight : 1.133
- Standards : UL Listed
- Certification : UL Listed
