Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA4145-6ED24-0AA0

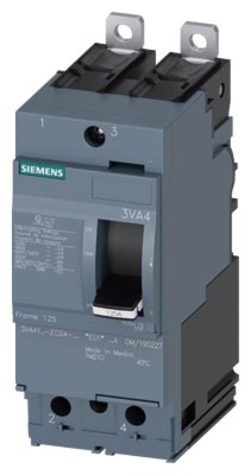

3VA4145-6ED24-0AA0 is a Siemens 2-pole thermal magnetic molded case circuit breaker rated for 45 amps and 480 volts AC.3VA4145-6ED24-0AA0 features a Frame 125 design with a high interrupting capacity Class H rating of 65 kA at 480V, suitable for industrial and commercial power distribution applications. It includes a thermal magnetic trip unit TM210 for reliable overload and short-circuit protection, with bolt-on mounting for secure installation.
- Amperage: 45 Amps
- Voltage Rating: 480 VAC
- Poles: 2
- Frame Size: 125
- Trip Unit: Thermal Magnetic (TM210)
- Interrupt Rating: 65 kA at 480V (Class H)
- Mounting Type: Bolt-On
- UL Listed and meets UL 489 standards
- Compact industrial design
- High inrush current capability (450%)
- Push-to-trip button for testing
- Suitable for line protection
Specifications
- Part Number: 3VA4145-6ED24-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 480V AC
- Amperage : 45
- Phase : 1
- Poles : 2
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766943003
- GTIN : 00804766943003
- Country of Origin : Mexico
- Dimensions : 6.614 x 5.315 x 2.283 inch
- Weight : 1.133
- Standards : UL Listed
- Certification : UL Listed
