Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA4140-6ED34-1AA0

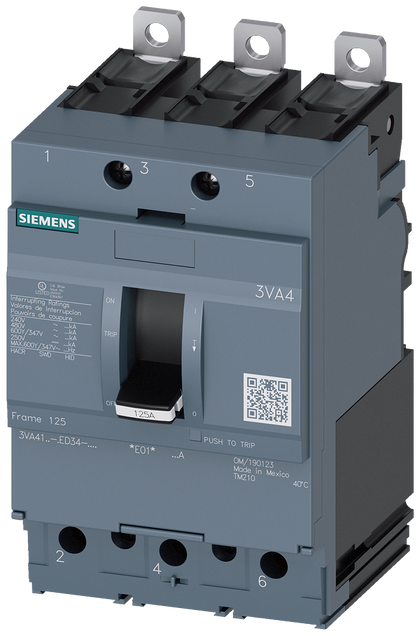

3VA4140-6ED34-1AA0 is a Siemens 3VA4 molded case circuit breaker designed for UL applications with line protection.3VA4140-6ED34-1AA0 features a 3-pole configuration, 40A rating, TM210 thermal-magnetic trip unit with fixed long-time and short-time protection, and high breaking capacity class H at 65kA @ 480V in a 125A frame.
- Part Number: 3VA4140-6ED34-1AA0
- Manufacturer: Siemens
- Series/Frame: 3VA4 UL Frame 125
- Number of Poles: 3
- Rated Current (In): 40A
- Trip Unit: TM210, FTFM (Fixed Thermal, Fixed Magnetic)
- Overload Protection (Ir): 40A
- Short-Circuit Protection (Ii): 10 x In
- Breaking Capacity: 65kA @ 480V (UL 489, Class H)
- Breaking Capacity @ 240V: 100kA
- Breaking Capacity @ 600Y/347V: 25kA
- Protection Function: LI
Specifications
- Part Number: 3VA4140-6ED34-1AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600V AC
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766945953
- GTIN : 00804766945953
- Country of Origin : Mexico
- Dimensions : 6.299 x 5.315 x 3.465 inch
- Weight : 1.638 lb
- Standards : UL Listed
- Certification : UL Listed
