Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA4120-43D34-0AA0

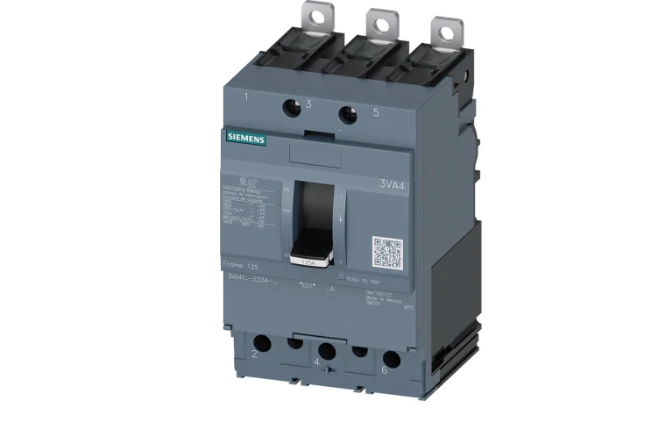

3VA4120-43D34-0AA0 is a Siemens 3-pole thermal magnetic molded case circuit breaker rated for 20 amps and 600Y/347V voltage, designed for reliable low voltage power distribution.This Siemens 3VA41 frame circuit breaker features a thermal magnetic trip unit providing standard (Class S) breaking capacity, suitable for industrial and commercial applications. It supports 3-pole configuration with a 600Y/347V, 480V voltage rating and is UL listed for safety and performance.
- Amperage: 20 Amps
- Voltage Rating: 600Y/347V, 480V
- Poles: 3
- Frame: 3VA41
- Trip Unit: Thermal Magnetic
- Mounting Type: Molded Case
- Interrupt Rating: Standard (Class S)
- Certifications: UL Listed
- Application: Low Voltage Power Distribution
Specifications
- Part Number: 3VA4120-43D34-0AA0
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 80476694356
- GTIN : 00804766943560
- Country of Origin : Mexico
- Dimensions : 5.315 x 6.299 x 3.465
- Weight : 2
- Standards : UL Listed
- Certification : UL Listed
