2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA41124ED340AA0

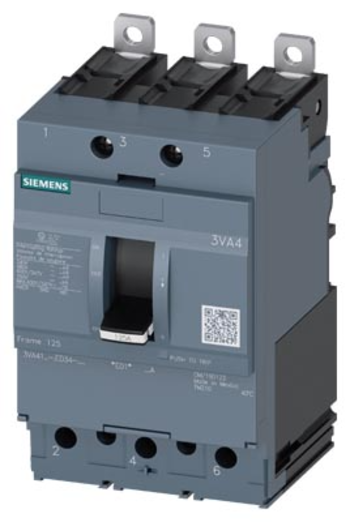

3VA41124ED340AA0 is a Siemens 125A 3-pole molded case circuit breaker designed for reliable line protection in UL frame 125 applications. This breaker features a TM210 thermal-magnetic trip unit with fixed overload and short-circuit protection, ideal for industrial and commercial power distribution systems. The Siemens 3VA41124ED340AA0 offers a standard breaking capacity of 25kA at 480V and 14kA at 600Y/347V, supporting robust performance in demanding environments. It is suitable for bolt-on mounting and meets UL 489, CSA, and HACR standards for safety and compliance.
- Part Number: 3VA41124ED340AA0
- Manufacturer: Siemens
- Series/Frame: 3VA4 UL Frame 125
- Amperage: 125A
- Poles: 3
- Voltage: 480V AC
- Interrupt Rating: 25kA @ 480V, 14kA @ 600Y/347V
- Mounting Type: Bolt-On
- Breaker Type: Molded Case
- Trip Unit: TM210 (Fixed Ir, Fixed Ii)
- Standards: UL 489, CSA, HACR
- Application: Line Protection
Specifications
- Part Number: 3VA41124ED340AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 80476694346
- GTIN : 00804766943447
- Country of Origin : Mexico
- Dimensions : 5.315 x 6.299 x 3.465
- Weight : 1.638
- Standards : UL Listed
- Certification : UL Listed
