3UB81334HW2 - Siemens 3-Phase Solid State Overload Relay 50-200A ESP200 Series DIN Rail Mount

3UB81334HW2

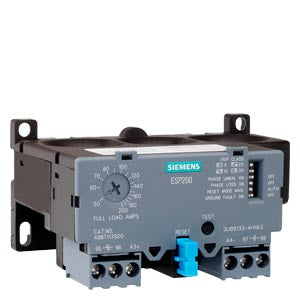

3UB81334HW2 is a Siemens 3-phase solid state overload relay designed for motor protection with an amperage range of 50 to 200 amps and ESP200 series classification.This overload relay features a 1NO-1NC contact form, supports direct or DIN rail mounting, and operates within a temperature range of -25 to 65 degrees Celsius. It has screw terminal connections and is suitable for motor protection applications requiring a class 5...30 trip unit. The relay is compact with dimensions approximately 2.31 in H by 4.97 in W and provides reliable protection with a contact rating of 200 A at 600 VAC.

Key Specifications
• Amperage Rating: 50 to 200 A
• Voltage Rating: Up to 600 VAC
• Number of Poles: 3
• Series: ESP200, Size B
• Contact Form: 1NO-1NC
• Mounting Type: Direct or DIN Rail
• Terminal Type: Screw
• Operating Temperature: -25 to 65 °C
• Trip Unit: Class 5...30
• Contact Rating: 200 A at 600 VAC
• Type: Solid State Overload Relay

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3UB81334HW2
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : ESP200
• Type : 3UB8
• Relay Style : Solid State
• Amperage Maximum : 200
• Amperage Minimum : 50

Product Data

• UPC : 662643854916
• GTIN : 00662643854916
• Country of Origin : Germany
• Dimensions : 2.441 x 4.646 x 4.961 inch
• Weight : 0.772
• Certification : REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), RoHS 07/01/2006
