Product Info
- Manufacturer:Siemens
- Sub-Category:Lug Terminal Kit
Description
3TA4P8500

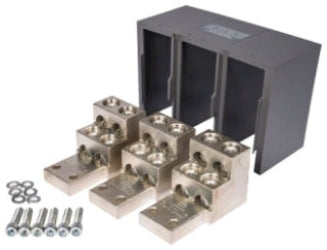

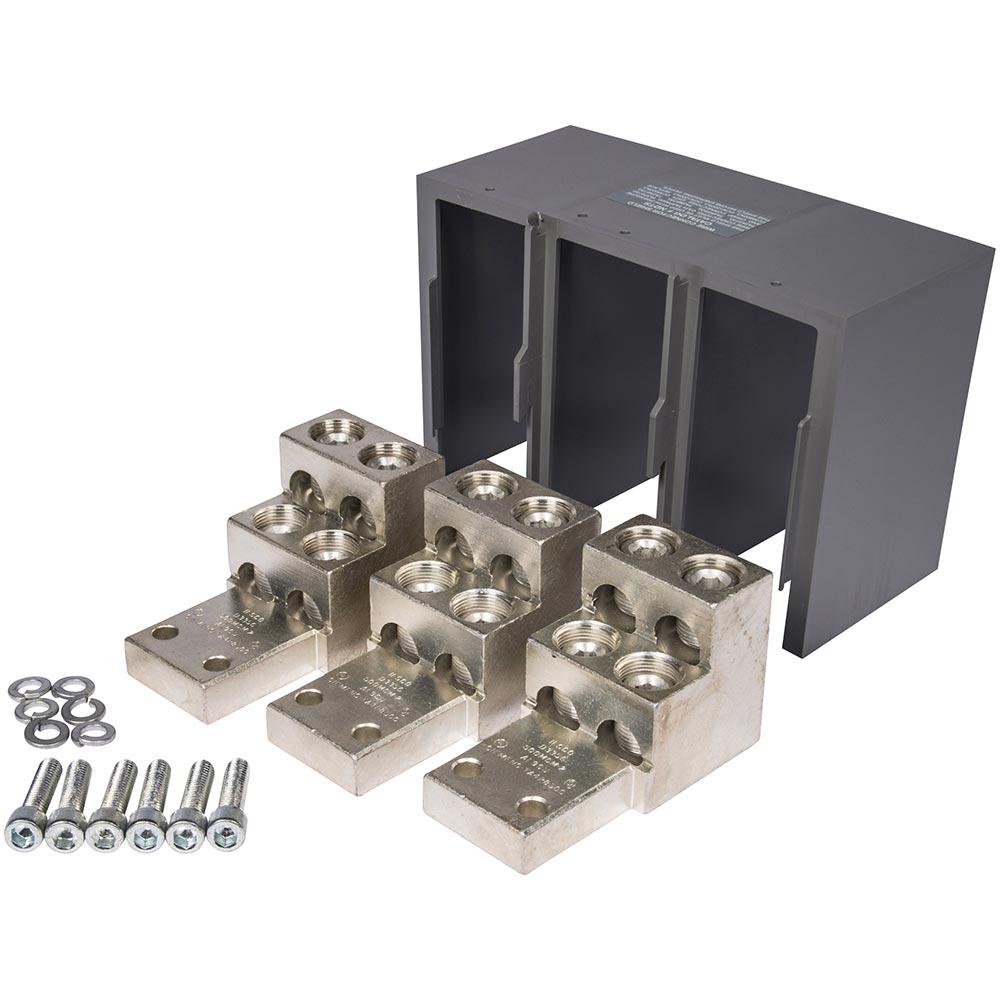

3TA4P8500 is a Siemens 3-pole circuit breaker lug kit designed for MD and ND frame breakers with amperage ratings from 600A to 1200A.This lug kit features a 3-piece aluminum body suitable for 3-pole 600A to 1200A MD/ND frame breakers. It supports wire ranges from 250 to 500 kcmil copper or aluminum conductors and includes a 4-barrel lug with NDTS end barrier for enhanced safety and reliability.
- Key Specifications
- Manufacturer: Siemens
- Part Number: 3TA4P8500
- Poles: 3
- Amperage: 600A to 1200A
- Frame Type: MD / ND
- Wire Range: 250 to 500 kcmil (Copper/Aluminum)
- Material: Aluminum body
- Includes NDTS end barrier
- Compatible with Sentron Series breakers
- Mounting Type: Lug terminal kit
Specifications
- Part Number: 3TA4P8500
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Lug Terminal Kit
- Family : Sentron Series
- Type : Sentron
- Amperage : 600-1200
- Poles : 3
- MCM Size : 500
- Barrels : 4
- Metal Type : Aluminum
Product Data
- UPC : 078364322106
- GTIN : 00783643221062
- Country of Origin : Mexico
- Weight : 5.772
- Standards : UL Listed
- Certification : UL Listed
- Wire Size : 250 to 500KCmil, CU/AL
