3TA225FDK - Cutler Hammer 225A 600VAC 3-Pole Lug Terminal Kit for FB FD HFD FDC FG Circuit Breakers

3TA225FDK

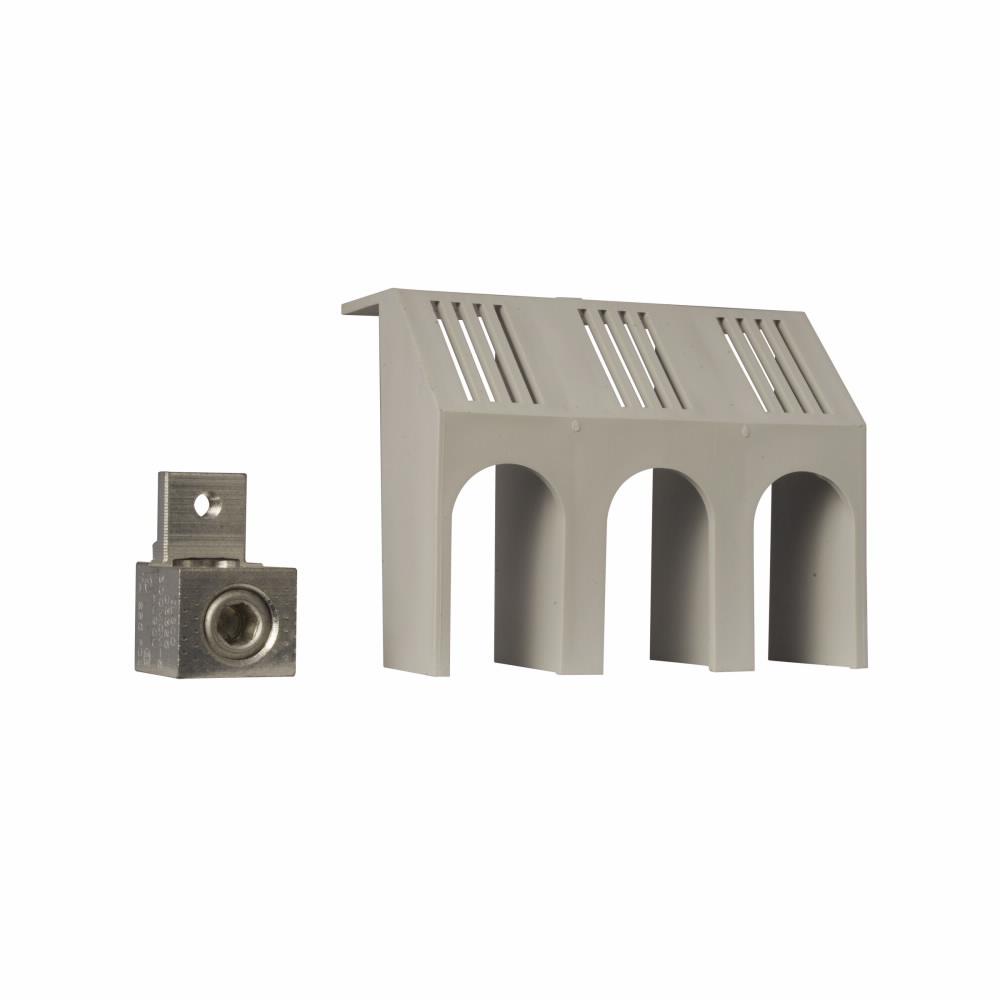

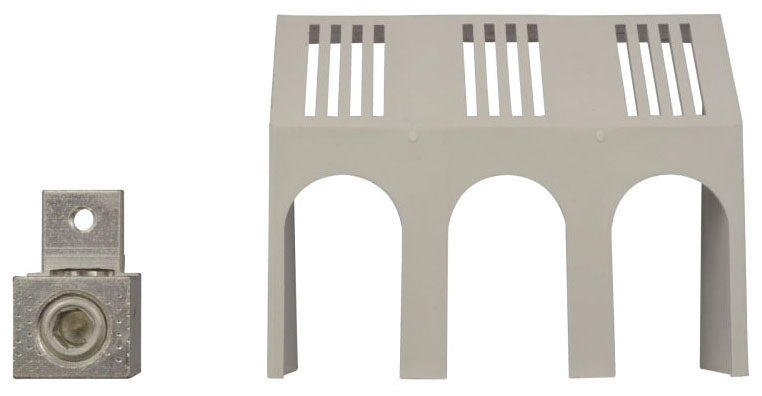

3TA225FDK is a Cutler Hammer lug terminal kit designed for use with molded case circuit breakers. It supports up to 225 amps and 600VAC voltage rating.This lug terminal kit is compatible with FB, FD, HFD, FDC, FG, HFDDC, E2F, and E2FM frame molded case circuit breakers. It features line and load side lug terminals suitable for wire gauges from AWG 6 to 300 KCMil copper or aluminum conductors. The kit includes terminals, washers, mounting screws, terminal shield, and warning/torque label, ensuring secure and safe connections.

• Amperage: 225 Amps
• Voltage: 600 VAC
• Poles: 3
• Compatible Frames: FB, FD, HFD, FDC, FG, HFDDC, E2F, E2FM
• Terminal Type: Lug (Line and Load Side)
• Wire Gauge Range: AWG 6 to 300 KCMil Cu/Al
• Mounting: Includes mounting screws and terminal shield
• Certifications: UL Listed
• Manufacturer: Cutler Hammer (Eaton)
• Series: C Frame

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3TA225FDK
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Lug Terminal Kit
• Family : Series C
• Type : C
• Voltage : 600VAC
• Amperage : 225
• MCM Size : 300
• Barrels : 1
• Metal Type : Aluminum
• Compatible Frames : FB, FD, HFD, FDC, FG, HFDDC, E2F, E2FM

Product Data

• UPC : 786679844250
• GTIN : 00786679844250
• Country of Origin : United States
• Dimensions : 6.4 in x 4.8 in x 4.1 in (Length/Depth x Height x Width)
• Weight : 0.7
• Standards : UL Listed
• Certification : UL Listed
• Wire Size : AWG 6 to 300KCmil, Cu/Al
