- Manufacturer:Siemens
Description
3SU14012BB401AA0

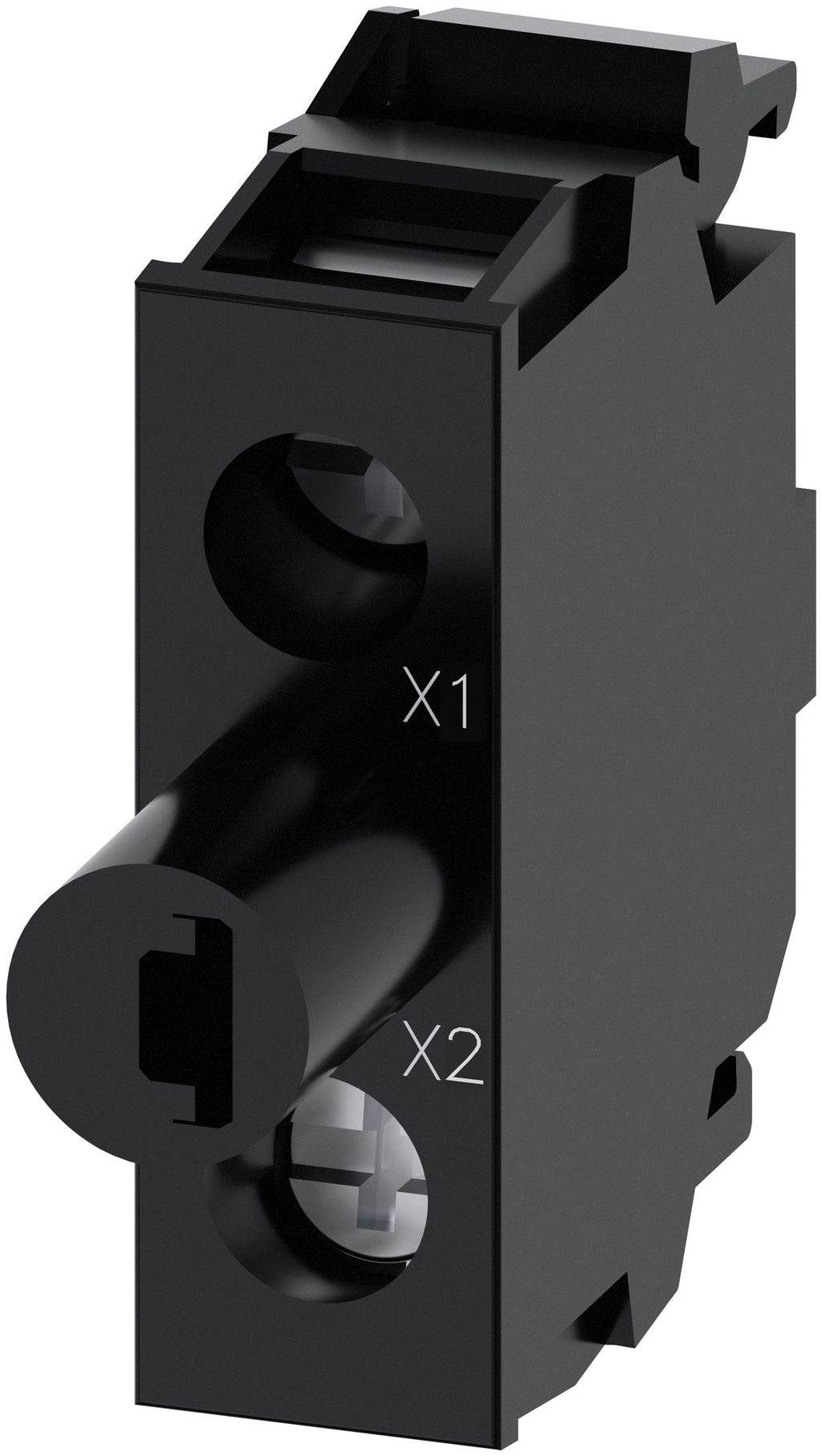

3SU14012BB401AA0 is a Siemens SIRIUS ACT LED module with integrated LED lamp designed for control circuit applications. This green LED module operates at 24V AC/DC and features a screw terminal connection for secure wiring in industrial control systems.Key Specifications
- Operating Voltage: 24V AC/DC (50/60 Hz)
- LED Color: Green
- Connection Type: Screw Terminal
- Connector Cross-Section: 0.5 to 0.75 mm2 solid conductors
- Maximum Consumed Current: 25 mA
- Insulation Voltage: 320V
- Protection Class: IP40 (enclosure), IP20 (terminal)
- Operating Life: 100,000 hours typical
- Mounting Style: Floor Mount
- Dimensions: 33.2 mm H x 9.8 mm W x 29.4 mm D
- Weight: 9 g
- Surge Voltage Resistance: 4 kV
Specifications
- Part Number: 3SU14012BB401AA0
- Brand : Siemens
Product Data
- UPC : 80476607412
- GTIN : 00804766074127
- Weight : 0.03
